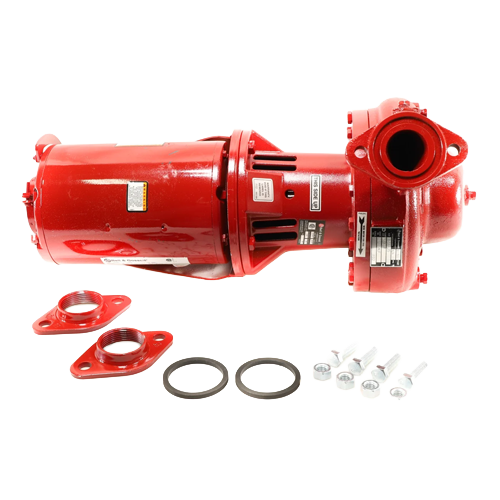

Bell & Gossett 1EF058LF e613T 3/4HP Cast Iron Bronze Flex Coupled In-Line Pump

Description

The Bell & Gossett 1EF058LF is a Model e613T Small Flex Coupled In-Line Centrifugal Pump engineered for reliable, long-term performance in commercial and industrial hydronic systems. Featuring a maintenance-free design, this pump eliminates the need for routine lubrication, reducing downtime and total cost of ownership.

Key Features

• Maintenance-free design — no routine lubrication required
• Small flex coupled in-line configuration for easy installation and alignment
• Cast iron construction with bronze fitted wetted components for durability and corrosion resistance
• 5.75″ impeller diameter for optimized hydraulic performance
• 1-1/2″ suction and discharge connections for straightforward piping integration
• Three-phase motor for smooth, efficient operation in commercial applications

Electrical Specifications

• Motor Horsepower: 3/4 HP
• Voltage: 208-230/460V AC
• Phase: Three Phase
• Motor Speed: 1750 RPM

Pump Specifications

• Model: e613T
• Impeller Diameter: 5.75″
• Suction Connection: 1-1/2″
• Discharge Connection: 1-1/2″
• Casing Material: Cast Iron
• Fitted Material: Bronze
• Coupling Type: Small Flex Coupled
• Mounting: In-Line

Applications

• Hydronic heating and cooling systems
• Commercial building HVAC circulation
• Industrial process fluid transfer
• Chilled water and hot water distribution loops

The Bell & Gossett e613T series is a trusted solution for HVAC professionals who demand dependable, efficient fluid handling. Its in-line design saves valuable mechanical room space, while the flex coupling accommodates minor shaft misalignment and reduces vibration transmission to the piping system. The cast iron and bronze fitted construction ensures compatibility with a wide range of hydronic system fluids.
