Description

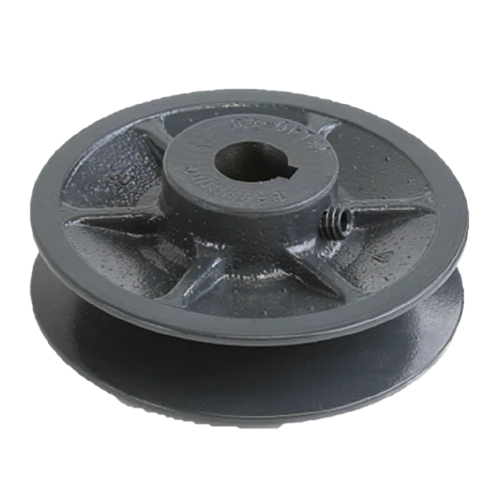

The Browning 1VL40X5/8 is a fixed bore V-belt sheave designed for compact, light-duty power transmission systems. This single-groove sheave features a 5/8-inch finished bore for direct shaft mounting, eliminating the need for a separate bushing. With an approximate 3.75-inch outside diameter, it is well-suited for fractional horsepower drives and smaller equipment. Constructed from durable cast iron, the sheave provides reliable performance, stable belt tracking, and resistance to wear in HVAC and light industrial applications.
Key Features
- Single-groove design for light-duty drive systems
- 5/8 inch finished bore for direct shaft mounting
- Approximate outside diameter: 3.75 inches
- Fixed bore design eliminates need for bushings
- Cast iron construction for durability and vibration resistance
