Description

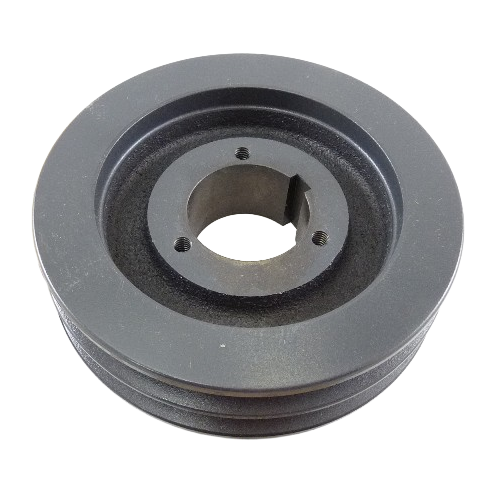

The Browning 2TB62 is a heavy-duty cast iron split taper sheave designed for reliable power transmission in HVAC equipment, pumps, compressors, and general industrial belt drive systems. Manufactured by Regal Rexnord, this fixed-pitch pulley features two grooves compatible with A and B section V-belts, allowing flexible horsepower and drive configurations. The sheave uses a P1 split taper bushing system that provides a true key-to-key connection between the shaft and hub for secure torque transfer. With a 6.55-inch outside diameter, the Browning 2TB62 delivers smooth operation and dependable belt alignment in demanding mechanical applications.
Key Features
- Sheave Type: Split taper bushed fixed-pitch sheave
- Number of Grooves: 2
- Belt Compatibility: A or B section V-belts
- Outside Diameter: 6.55 inches
- Bushing Series: P1 split taper bushing required
- Bore Range: 0.50" minimum to 1.75" maximum with P1 bushing
- Material: Close-grain cast iron construction for durability and precise machining
