Description

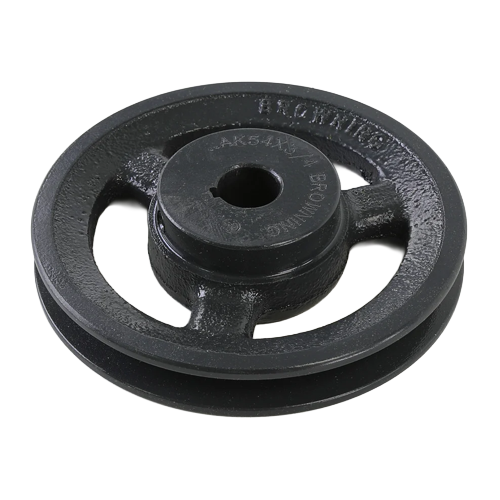

The Browning AK54X3/4 V-Belt Sheave is a single-groove cast iron pulley designed for use with A and 4L section V-belts in HVAC and light industrial drive systems. This sheave features a 5.25-inch outside diameter and a 3/4-inch finished bore, allowing direct mounting onto compatible motor or fan shafts without the need for a bushing. Precision-cast and statically balanced, it provides smooth operation, proper belt alignment, and reduced vibration for extended belt and bearing life. Manufactured to Browning standards, it is well suited for fans, blowers, and other fractional to light-horsepower applications.
Key Features
- Single-groove AK-series sheave compatible with A and 4L section V-belts
- 5.25″ outside diameter supports common speed ratios in HVAC applications
- 3/4″ finished bore for direct shaft mounting without additional bushings
- Durable cast iron construction for long service life
- Statically balanced design minimizes vibration and improves belt performance
