Description

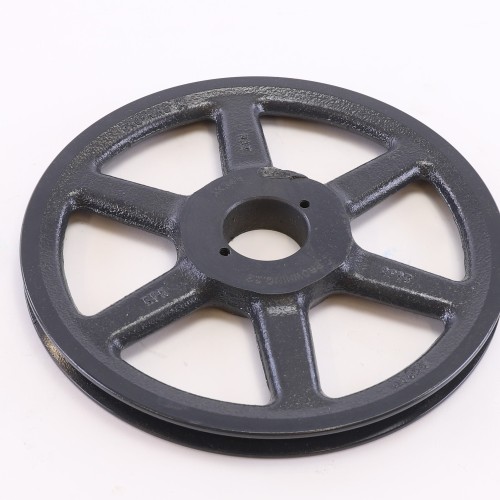

The Browning AK94H is a heavy-duty, single groove cast iron sheave engineered for dependable power transmission in HVAC and industrial belt-drive applications. With a 9.25″ outside diameter and compatibility with H Series bushings, this sheave delivers a secure, precisely centered fit that minimizes vibration and maximizes drive efficiency.
Product Overview
The AK94H belongs to Browning’s AK Series sheave line, a trusted standard in the industry for variable-pitch and fixed-pitch belt drive systems. Cast iron construction provides excellent rigidity and wear resistance, making it well-suited for blower, fan, and motor drive assemblies commonly found in commercial and industrial HVAC equipment.
Key Features
- 9.25″ outside diameter for precise belt alignment and efficient power transfer
- Single groove design compatible with 3L, 4L, and A cross-section V-belts
- H Series bushing bore — sold separately — for easy installation and removal
- Cast iron construction for long service life and resistance to wear
- Balanced design reduces vibration and extends bearing and belt life
- AK Series sheave profile ensures proper belt seating and grip
Compatible Belt Sections
- 3L (FHP fractional horsepower) V-belts
- 4L (FHP fractional horsepower) V-belts
- A (classical) V-belts
Bushing Compatibility
- Designed for use with H Series taper-lock bushings (sold separately)
- Bushing-style mounting allows for quick shaft installation and removal without special tools
- Accommodates a range of shaft diameters depending on selected H Series bushing
Typical Applications
- HVAC blower and fan drive systems
- Air handling unit (AHU) motor-to-blower drives
- Commercial and industrial belt-drive assemblies
- Pump and compressor drives requiring reliable torque transmission
Specifications
- SKU: AK94H
- Brand: Browning
- Outside Diameter: 9.25″
- Groove Quantity: Single groove
- Sheave Series: AK
- Bushing Type: H Series (sold separately)
- Compatible Belt Sections: 3L, 4L, A
- Material: Cast iron
