Description

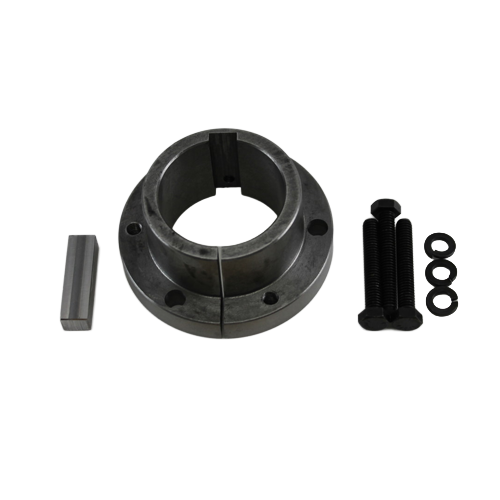

The Browning SK 2 3/16 is a Q-D (quick-disconnect) bushing designed to mount Browning sheaves, sprockets, and pulleys securely to a shaft. This SK-series bushing features a finished 2-3/16 inch bore and a 3/4 in/ft tapered barrel that provides strong mechanical locking between the shaft and driven component. Manufactured from ductile iron (65-45-58), it offers durability and reliable torque transmission in HVAC fans, pumps, conveyors, and other belt-driven systems. The reversible mounting design allows installation with the flange facing either direction for flexible equipment assembly.
Key Features
- 2-3/16 in finished bore (2.1875 in) for shaft mounting
- SK-series Q-D bushing compatible with Browning sheaves, sprockets, and pulleys
- 3.875 in flange outside diameter
- 1.875 in length through bore
- Ductile iron construction (65-45-58) for strength and durability
- 3/4 in per foot taper barrel provides strong self-locking shaft connection
