Description

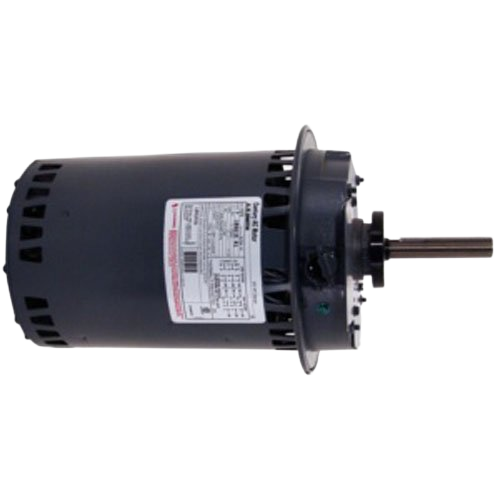

Ensure optimal performance and reliability in your HVAC system with the Carrier HD52AK652 Condenser Fan Motor. This genuine OEM replacement motor is engineered to meet the highest standards, providing efficient airflow and cooling capabilities for commercial applications.
Key Features:
- Horsepower: 1 HP
- Voltage: 208/230/460V
- Phase: 3-Phase
- RPM: 1140
- Frequency: 60 Hz
- Amperage: 5.5/3.4A
- Shaft Diameter: 5/8″
- Shaft Length: 3-1/2″
- Rotation: Counterclockwise (CCW)
- Mounting Type: Round Belly Band
- Motor Diameter: 6-1/2″
- “A” Dimension: 15″
- Service Factor: 1.0
- Enclosure: Open Air Over (OAO)
- Insulation Class: B
- Overload Protection: Thermally Protected
