Description

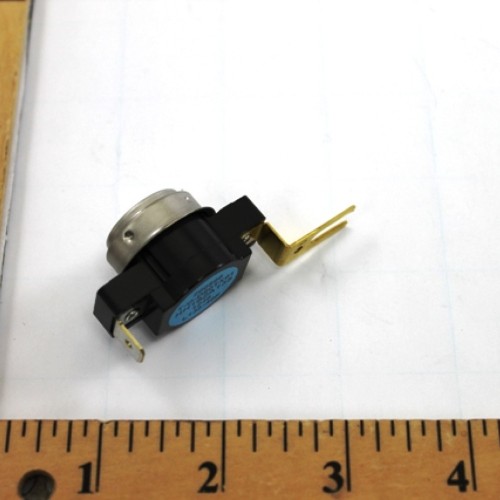

The Carrier HH19ZA135 is an OEM replacement high-limit switch designed to protect furnaces and heating equipment from dangerous overheating conditions. Rated as an L135-40F device, this limit switch opens the control circuit when the sensed temperature reaches 135°F, interrupting burner operation and preventing heat exchanger damage or fire hazards. Once the equipment cools, the switch automatically resets after a 40°F differential drop, restoring normal furnace operation without the need for manual intervention.
How It Works
The limit switch continuously monitors air temperature within the furnace plenum or heat exchanger area. If airflow is restricted — due to a dirty filter, blocked return, or failed blower — temperatures rise rapidly. The HH19ZA135 responds by opening the circuit at the rated trip point, shutting down the burner until safe operating temperatures are restored. This automatic protection helps prevent costly heat exchanger failures and potential carbon monoxide hazards.
Key Features
- OEM Carrier replacement part — SKU HH19ZA135
- L135-40F rating: opens (trips) at 135°F, resets at 40°F differential
- Automatic reset operation for convenient, hands-free recovery
- Designed for use in Carrier furnaces and compatible heating systems
- Reliable bimetal or disc-type sensing element for accurate temperature response
- Direct OEM replacement for precise fit and function
Application
- Carrier residential and light commercial gas furnaces
- Plenum and heat exchanger high-limit protection
- Compatible with systems requiring an L135-40F limit switch specification
Why Replace Your Limit Switch?
A faulty or worn limit switch can cause nuisance lockouts, short-cycling, or — more critically — fail to protect against overheating. Using a genuine Carrier OEM replacement like the HH19ZA135 ensures the switch trips and resets at the correct calibrated temperatures, maintaining both equipment longevity and household safety.
