Description

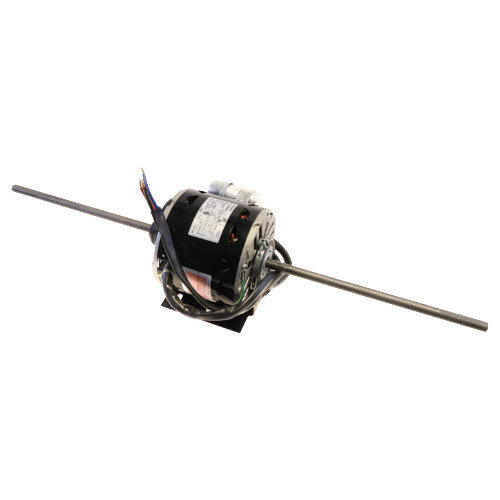

The Century 680A is a reliable Permanent Split Capacitor (PSC) fan motor engineered for HVAC applications demanding multi-speed airflow control and dependable long-term performance. Built on the industry-standard F48Y NEMA frame, this motor integrates seamlessly into a wide range of residential and light commercial fan and blower assemblies.
Key Specifications
- Horsepower: 1/8 HP
- Voltage: 115 VAC, Single Phase
- Speeds: 3-Speed — 775 / 650 / 525 RPM
- Amperage: 1.5 Amps
- NEMA Frame: F48Y
- Motor Type: Permanent Split Capacitor (PSC)
- Enclosure: Open Air
- Bearing Type: Sleeve Bearing
- Shaft Dimensions: 11½” x ½” x 11½”
- Rotation: Counterclockwise (CCW), Lead End
Design & Performance Features
- Three selectable speed settings allow precise airflow matching to system requirements
- Permanent Split Capacitor design delivers smooth, quiet operation and improved energy efficiency over shaded-pole alternatives
- Open air enclosure promotes effective heat dissipation for extended motor life
- Sleeve bearings provide quiet, low-maintenance operation in horizontal or vertical shaft-up/down mounting orientations
- F48Y NEMA frame ensures broad OEM and aftermarket compatibility
- CCW lead-end rotation is clearly designated for correct installation and airflow direction
Typical Applications
- Evaporative cooler fan motors
- Residential and light commercial fan coil units
- Attic and whole-house ventilation fans
- OEM replacement in multi-speed blower assemblies
The Century 680A delivers the proven quality and dimensional accuracy HVAC technicians depend on for fast, confident replacements. Its versatile multi-speed capability and standard F48Y frame make it a go-to stock item for service vans and supply houses alike.
