Description

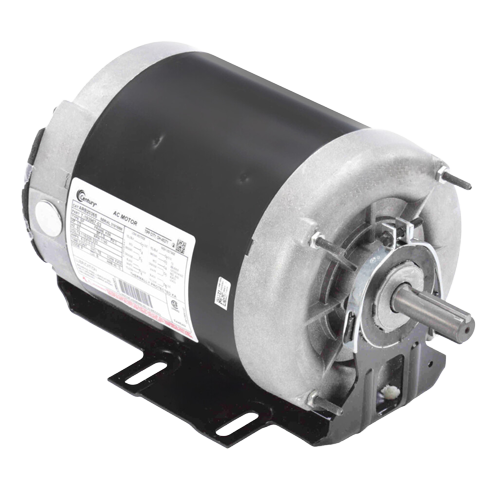

The Century ARB2036S is a heavy-duty belt drive motor engineered for reliable performance in demanding HVAC and commercial air-handling applications. Built on a rugged K56 frame with a Totally Enclosed Non-Ventilated (TENV) design, this motor is well-suited for environments where dust, moisture, or debris could compromise an open motor’s longevity.
Electrical Specifications
- Voltage: 115/208-230V AC
- Phase: Single Phase
- Amperage: 6.0A (115V) / 3.0A (208-230V)
- Speed: 1 Speed, 1140 RPM
- Horsepower: 1/3 HP
Mechanical Specifications
- Frame Size: K56
- Enclosure: Totally Enclosed Non-Ventilated (TENV)
- Bearing Type: Ball Bearing
- Shaft Diameter: 5/8″
- Rotation: Reversible
- Mounting: Cushion Base
Protection & Features
- Thermally Protected — guards against overheating and motor burnout
- Reversible rotation for flexible installation configurations
- Ball bearings for smooth, long-lasting operation with reduced maintenance
- TENV enclosure shields internal components from contaminants
- Cushion base mounting for vibration dampening and quiet operation
Typical Applications
- Belt-driven air handlers and blower assemblies
- Commercial HVAC fan systems
- Industrial ventilation and exhaust equipment
- Replacement motor for K56 frame belt drive units
The dual-voltage capability (115/208-230V) makes the ARB2036S adaptable to a wide range of electrical service configurations, reducing the need for separate motor SKUs across different job sites. The cushion base mounting simplifies installation and helps reduce noise and vibration transmission to the surrounding structure.
