Description

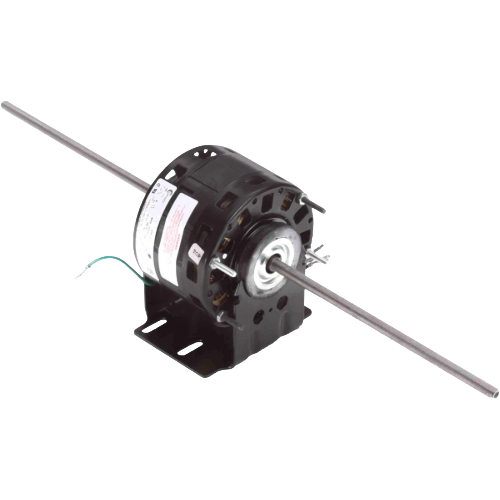

The Century DBL4411 is a heavy-duty, multi-speed shaded pole motor engineered for reliable performance in a wide range of HVAC fan and blower applications. Designed for easy installation and long service life, this motor delivers flexible horsepower and amperage options in a compact, open-air package.
Motor Specifications
- Horsepower: 1/10, 1/12, 1/20, 1/25 HP (4-speed selectable)
- Voltage: 115 VAC, Single Phase
- Speed: 1550 RPM
- Amperage: 3.5 / 2.6 / 1.9 / 1.6 Amps (corresponding to each speed)
- NEMA Frame: 42Y
- Motor Type: Shaded Pole
- Enclosure: Open Air
- Bearing Type: Sleeve Bearing
- Mounting: Resilient Base
Shaft & Rotation Details
- Shaft Dimensions: 9 5/16″ x 3/8″ x 9 5/16″
- Rotation: CCW (Counter-Clockwise), Lead End
Key Features & Benefits
- Four selectable speed/horsepower settings provide versatile application flexibility
- Sleeve bearing construction ensures quiet, smooth operation with minimal maintenance
- Resilient base mounting reduces vibration transmission and simplifies installation
- Open air enclosure promotes efficient heat dissipation for extended motor life
- 42Y NEMA frame ensures compatibility with a wide range of OEM and replacement applications
- Single-phase 115V operation suits standard residential and light commercial power supplies
Typical Applications
- Residential and commercial HVAC fan coil units
- Evaporator and condenser fan assemblies
- Air handling unit blowers
- OEM and aftermarket motor replacement
The Century DBL4411 is a trusted choice for HVAC technicians and contractors seeking a dependable, multi-speed shaded pole motor with a proven track record in the field. Its 42Y NEMA frame and resilient base mounting make it a straightforward drop-in replacement for a variety of fan motor applications.
