Description

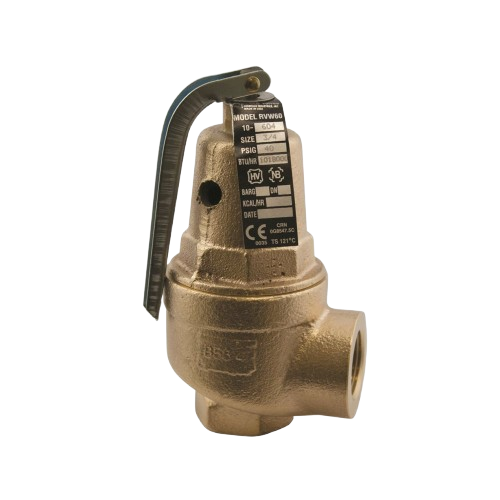

The Conbraco 10 614 10 is a high-capacity safety relief valve designed to protect hot water heating systems and boilers. Built with reliability and performance in mind, this valve ensures safe pressure regulation, preventing system overpressure and potential damage.
Key Features
- Inlet/Outlet: ¾″ female NPT inlet × 1″ female NPT outlet.
- Set Pressure: Factory set at 50 PSI; can be pre-set anywhere from 15 to 160 PSI at up to 250 °F.
- Capacity: 1,418,000 BTU/hr, making it well-suited for high-capacity heating applications.
- Maximum Operating Temperature: 250°F (121°C)
- Body Material: Durable bronze construction (ASTM B584) for corrosion resistance.
- Seat Material: Silicone seat provides a reliable, tight seal.
- Design: Diaphragm-isolated spring chamber protects the internal spring from direct water contact, prolonging service life.
- Certifications: ASME Section IV capacity certified, ensuring trusted performance and compliance.
- High Flow Outlet: Oversize outlet design to accommodate rapid pressure relief.
