Description

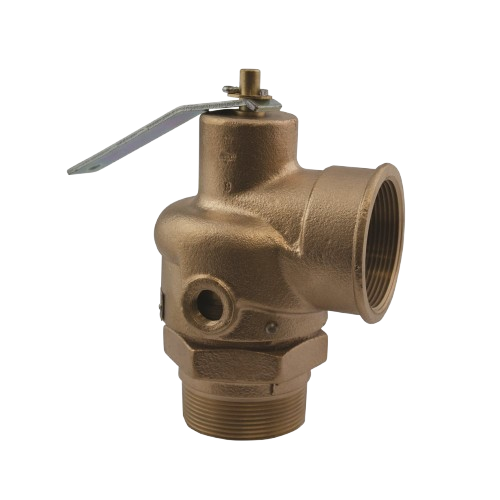

The Conbraco 12 205 08 is a high capacity safety relief valve designed for low pressure steam systems. Engineered to meet ASME Section IV standards, this bronze-bodied valve ensures reliable overpressure protection in steam boilers operating up to 15 psig.
Key Features
- Set Pressure: Factory set to 15 PSI, with a range suitable for low-pressure steam applications.
- Capacity: Rated at approximately 2,500 lb/hr (PPH), making it suitable for medium-sized steam boilers.
- Connections: 2″ MNPT (male inlet) × 2″ FNPT (female outlet) for compatibility with standard steam piping.
- Construction: All bronze body for durability and corrosion resistance.
- Seat Seal: Features a PTFE coated O-ring for tight, dependable sealing and reliable operation.
- Spring: Rust-resistant steel spring ensures long-term performance.
- Drain Tapping: Equipped with a 3/8″ NPT side tapping to connect a drain line for maintenance or leakage.
- Temperature Rating: Rated for saturated steam up to 250°F.
