Description

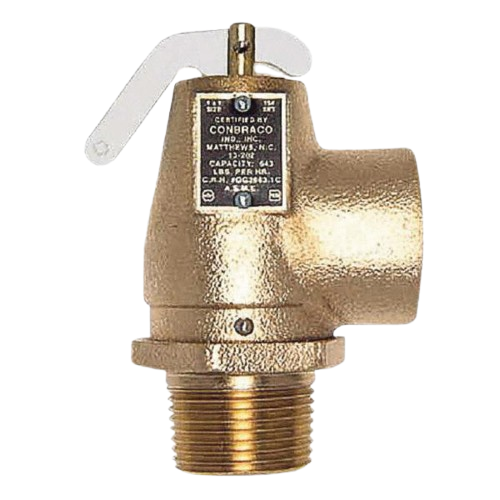

Enhance the safety and reliability of your steam system with the Conbraco 13-202-B15, a robust relief valve engineered for low-pressure boiler applications.
Key Features
- Suitable for 1″ male NPT inlet × 1″ female NPT outlet configuration.
- Set pressure: 15 PSI — ideal for low-pressure steam heating boiler systems.
- Rated capacity: approximately 643 lb/hr (PPH) at set point for the 1″ size.
- Body material: Bronze (ASTM B584).
- Disc material: PTFE-coated (or similar) for positive seal; Seat material: modified TFE.
- Temperature rating: up to about 250 °F for saturated steam service.
- Designed in compliance with ASME Section IV for low-pressure steam boiler relief.
