Description

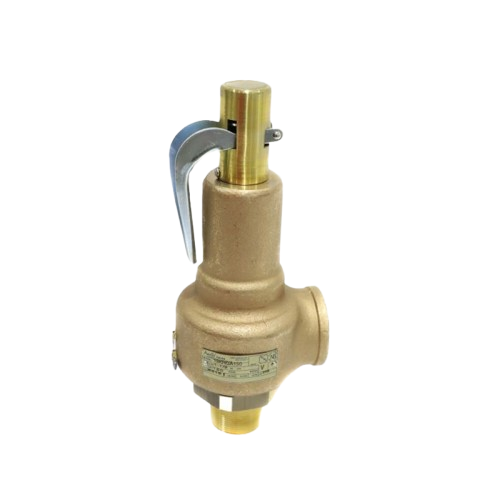

Equip your steam system with reliable over pressure protection using the Conbraco 19 KHGA 150, a factory authorized bronze bodied safety relief valve. Designed to protect boilers, pressure vessels, and piping systems, this valve delivers high performance relief at 150 psi in ASME Section I steam service.
Key Features
- Built to Conbraco’s original equipment standards—with bronze body, brass trim, and a soft seat (PFA/Teflon) design for dependable sealing and long service life.
- Rated for 150 psi set pressure in steam service, making it ideal for high capacity applications. The 1½″ MNPT inlet by 2″ FNPT outlet version handles up to approximately 6,616 lb/hr of steam capacity.
- Full bore, double ring orifice design ensures efficient venting and reliable operation under demanding conditions.
- Versatile compatibility: suitable for steam boilers, sterilizers, pressure vessels, air compressors, pneumatic conveying systems—and many more industrial applications requiring ASME safety valve compliance.
