Description

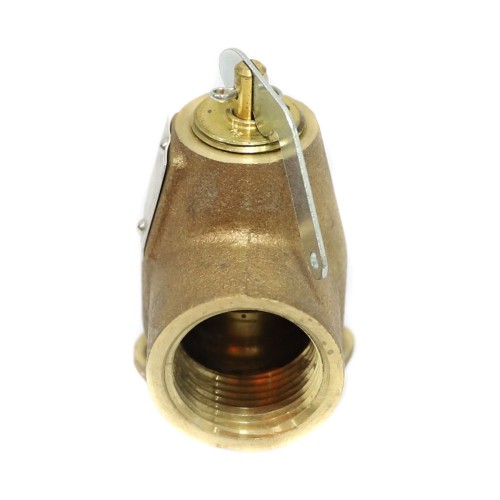

The Conbraco Industries 10-102-05 is an ASME Section IV-certified brass hot water pressure relief valve engineered for reliable overpressure protection in residential and commercial hydronic heating systems. Factory-set at 30 PSI, it automatically opens to discharge excess pressure before it can cause damage to boilers, water heaters, or associated piping.
Key Features
- ASME Section IV certified for hot water heating service
- Factory pre-set at 30 PSI relief pressure
- 710,000 BTU rated capacity for high-output heating systems
- 250°F maximum temperature service rating
- 3/4″ Female NPT inlet connection for straightforward installation
- 1″ Female NPT outlet connection for efficient discharge flow
- Durable brass construction for long-lasting corrosion resistance
Specifications
- SKU: 10-102-05
- Brand: Conbraco Industries
- Set Pressure: 30 PSI
- BTU Capacity: 710,000 BTU
- Maximum Temperature: 250°F
- Inlet Connection: 3/4″ Female NPT
- Outlet Connection: 1″ Female NPT
- Body Material: Brass
- Certification: ASME Section IV
- Service: Hot Water Pressure Relief
Applications
- Residential and commercial boilers
- Hot water heating systems
- Hydronic heating equipment
- Water heaters requiring ASME-rated overpressure protection
The Conbraco 10-102-05 meets ASME Section IV code requirements, making it the go-to choice for contractors and engineers who need a dependable, code-compliant relief valve for hot water heating applications. Its brass body and precision-set spring mechanism ensure consistent, repeatable performance across the life of the installation.
