Description

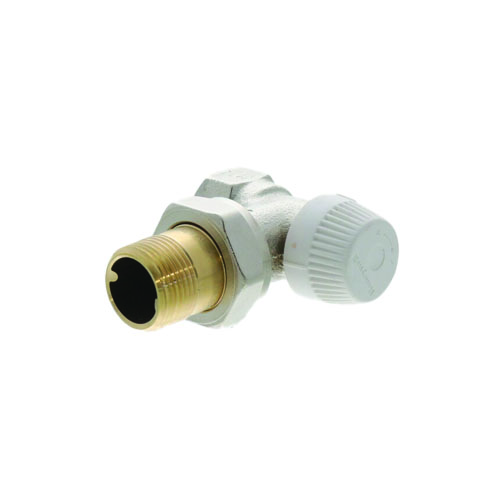

The Resideo V2040ESL20 is a thermostatic radiator valve engineered for automatic, precise temperature control in hydronic and one-pipe steam heating systems. Its 3/4 inch NPT vertical angle body configuration makes it the ideal choice for installations where piping must change direction upward or downward at the radiator. By continuously sensing room temperature and modulating hot water or steam flow accordingly, this valve delivers consistent comfort while maximizing energy efficiency — no electrical wiring required.
Constructed with a durable nickel-plated bronze body and an adjustable, replaceable internal cartridge, the V2040ESL20 is built for long service life and straightforward maintenance. Compatibility with T100 series thermostatic actuators provides a complete, self-contained control solution for residential and commercial heating applications.
Key Features
- 3/4 inch NPT threaded vertical angle body — ideal for directional piping changes at the radiator
- Automatic temperature control for radiators and convectors in hydronic and one-pipe steam systems
- Compatible with T100 series thermostatic control heads for a complete, wiring-free solution
- Adjustable and replaceable internal cartridge for simplified servicing and long-term reliability
- Nickel-plated bronze construction for superior durability and corrosion resistance
- Approximate 2.7 Cv flow capacity for efficient, responsive heat control
- No electrical connection required — self-powered thermostatic operation
Specifications
- SKU: V2040ESL20
- Brand: Resideo
- Connection Size: 3/4 inch NPT
- Body Orientation: Vertical Angle
- Flow Coefficient (Cv): Approximately 2.7
- Body Material: Nickel-plated bronze
- Compatible Actuator Series: T100
- Application: Hydronic and one-pipe steam heating systems
