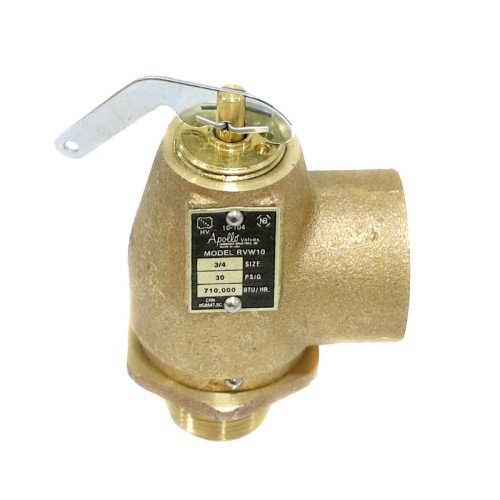

Conbraco Industries 10-104-05 ASME Brass Hot Water Pressure Relief Valve

Description

Overview

The Conbraco Industries 10-104-05 is a heavy-duty brass hot water pressure relief valve engineered for reliable overpressure protection in residential and commercial hydronic heating systems. Designed and certified to ASME Section IV standards, this valve provides dependable safety performance you can trust in boiler and hot water heating applications.

Key Features

• 3/4″ Male NPT inlet connection for easy integration into standard piping systems
• 1″ Female NPT outlet connection for efficient discharge flow
• Factory set at 30 PSI — no field adjustment required
• Rated capacity of 710,000 BTU/hr to handle high-demand heating systems
• Maximum temperature service rating of 250°F for hot water heating applications
• Constructed from durable brass for long-lasting corrosion resistance
• ASME Section IV certified — meets industry safety and performance standards

Specifications

• SKU: 10-104-05
• Brand: Conbraco Industries
• Inlet Connection: 3/4″ Male NPT
• Outlet Connection: 1″ Female NPT
• Set Pressure: 30 PSI
• BTU Capacity: 710,000 BTU/hr
• Maximum Temperature: 250°F
• Body Material: Brass
• Certification: ASME Section IV
• Application: Hot Water Heating Systems

Application

Ideal for use on hot water boilers, water heaters, and hydronic heating systems where overpressure protection is required. The ASME Section IV rating ensures this valve meets the strict safety requirements mandated for pressure relief in heating boiler applications. The high BTU capacity makes it suitable for larger residential and light commercial installations.
