Description

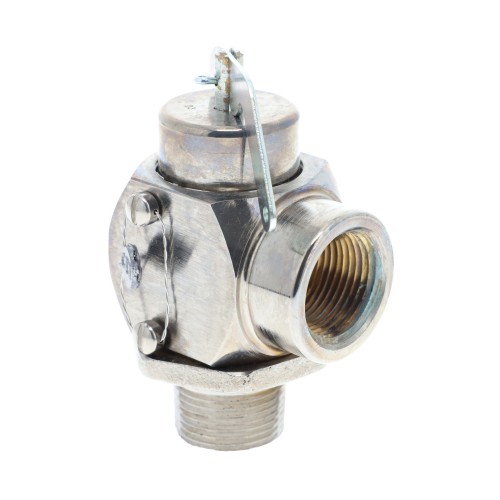

The Conbraco Industries 10-322-P40 is a polished chrome steam pressure safety relief valve engineered for reliable overpressure protection in steam heating and process systems. Built to ASME Section VIII standards, this valve delivers dependable performance and code-compliant safety in demanding commercial and industrial applications.
Key Specifications
- Inlet Connection: 3/4″ Male NPT
- Outlet Connection: 3/4″ Female NPT
- Set Pressure: 40 PSI
- Capacity: 525 lb./hr.
- Maximum Temperature: 312°F
- Finish: Polished Chrome
- Certification: ASME Section VIII
- Media: Steam
Product Highlights
- ASME Section VIII certified for code-compliant overpressure protection
- Factory set at 40 PSI for consistent, reliable relief performance
- 525 lb./hr. capacity handles demanding steam system loads
- Rated for service up to 312°F maximum temperature
- 3/4″ Male NPT inlet and 3/4″ Female NPT outlet for straightforward installation
- Polished chrome finish provides corrosion resistance and a professional appearance
- Compact design suits a wide range of steam boiler and heating system configurations
Application
The Conbraco 10-322-P40 is ideal for use on steam boilers, pressure vessels, and steam heating systems where ASME-rated overpressure protection is required. The valve automatically opens to relieve excess pressure when system pressure reaches the factory-set 40 PSI threshold, protecting equipment and personnel from dangerous overpressure conditions. Its polished chrome construction and NPT connections make it a versatile, drop-in solution for both new installations and replacement applications.
