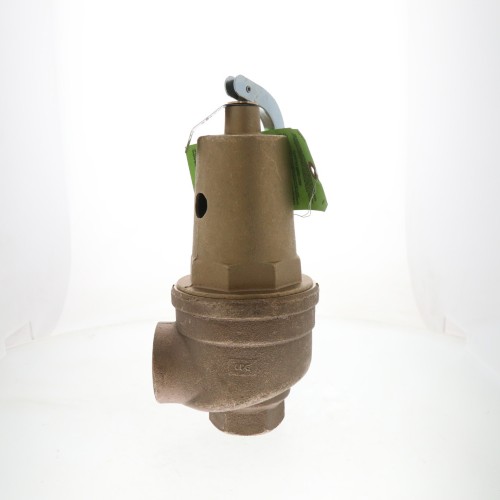

Conbraco Industries 10-607-20 1-1/2″ FNPT Hot Water High Capacity Pressure Relief Valve, 100 PSI, 8,238,000 BTU

Description

The Conbraco Industries 10-607-20 is a high-capacity hot water pressure relief valve engineered for demanding hydronic and boiler system applications. Designed to provide reliable overpressure protection, this valve is factory-set at 100 PSI and delivers an exceptional BTU capacity of 8,238,000 BTU/hr, making it well-suited for large commercial and industrial heating systems.

Key Features

• Factory set at 100 PSI for consistent, reliable pressure relief
• High-capacity design rated at 8,238,000 BTU/hr
• 1-1/2″ Female NPT inlet connection for easy installation
• 1-1/2″ Female NPT outlet connection for straightforward discharge piping
• Built for hot water heating system applications
• Heavy-duty construction from Conbraco Industries — a trusted name in flow control and safety valves

Specifications

• SKU: 10-607-20
• Brand: Conbraco Industries
• Inlet Connection: 1-1/2″ Female NPT
• Outlet Connection: 1-1/2″ Female NPT
• Set Pressure: 100 PSI
• BTU Capacity: 8,238,000 BTU/hr
• Valve Type: Hot Water High Capacity Pressure Relief Valve

Applications

• Commercial and industrial hot water boiler systems
• Large-scale hydronic heating systems
• High-output water heaters requiring certified pressure relief protection
• Any system requiring ASME-style pressure relief at 100 PSI
