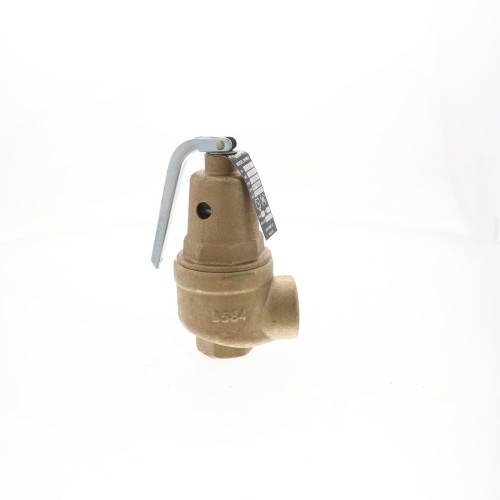

Conbraco Industries 10-614-36 Hot Water High Capacity Pressure Relief Valve

Description

Conbraco Industries 10-614-36 Hot Water High Capacity Pressure Relief Valve

The Conbraco Industries 10-614-36 is a high-capacity pressure relief valve engineered for demanding hot water heating systems. With an impressive 3,879,000 BTU capacity rating, this valve is built to handle the pressure-relief demands of large commercial and industrial hydronic applications. Its factory-set 160 PSI relief point provides dependable, code-compliant overpressure protection, helping safeguard boilers, water heaters, and associated piping from potentially dangerous pressure buildup.

Key Features

• High-capacity design rated at 3,879,000 BTU for large-scale hot water systems
• Factory set at 160 PSI for consistent, reliable overpressure protection
• 3/4″ Female NPT inlet connection for straightforward installation
• 1″ Female NPT outlet connection to accommodate high discharge flow rates
• Robust construction from Conbraco Industries, a trusted name in valve manufacturing
• Designed for hot water heating applications in commercial and industrial environments

Specifications

• SKU: 10-614-36
• Brand: Conbraco Industries
• Valve Type: Hot Water High Capacity Pressure Relief Valve
• Inlet Connection: 3/4″ Female NPT
• Outlet Connection: 1″ Female NPT
• Set Pressure: 160 PSI
• BTU Capacity: 3,879,000 BTU
• Application: Hot Water Heating Systems

Application

The Conbraco 10-614-36 is ideal for use on commercial boilers, large water heaters, and high-output hydronic heating systems where standard-capacity relief valves are insufficient. Its high BTU rating ensures the valve can safely discharge excess pressure in even the most demanding system configurations, making it a go-to solution for mechanical contractors and HVAC professionals who require dependable safety performance.
