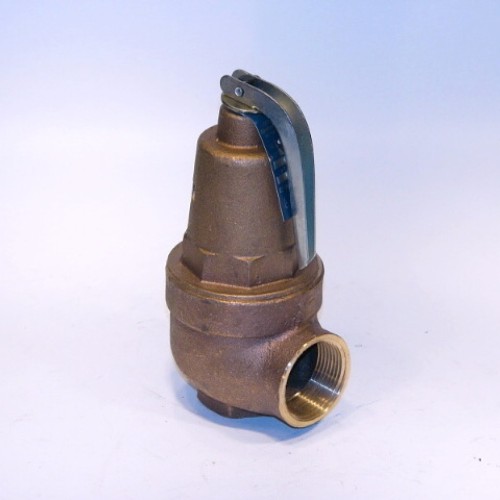

Conbraco Industries 10-615-09 Hot Water High Capacity Pressure Relief Valve, 45 PSI

Description

Conbraco Industries 10-615-09 Hot Water High Capacity Pressure Relief Valve

The Conbraco Industries 10-615-09 is a high-capacity hot water pressure relief valve engineered to deliver dependable overpressure protection in demanding hydronic heating and hot water systems. With a factory-set relief pressure of 45 PSI and an impressive 2,114,000 BTU capacity rating, this valve is built to handle the rigorous demands of commercial and high-output residential boiler and water heater applications.

The 10-615-09 features a 1″ Female NPT inlet connection and a larger 1-1/4″ Female NPT outlet, a design that promotes efficient discharge flow and helps prevent back pressure buildup during a relief event. This size differential between inlet and outlet is characteristic of high-capacity relief valves where rapid, unobstructed discharge is critical to system and occupant safety.

Key Features

• Factory set at 45 PSI — no field adjustment required
• 2,114,000 BTU/hr rated capacity for high-output systems
• 1″ Female NPT inlet connection
• 1-1/4″ Female NPT outlet connection for unrestricted discharge flow
• High-capacity design suited for commercial and large residential hot water heating systems
• Durable construction from Conbraco Industries, a trusted name in flow control and safety valves

Applications

• Hot water boilers and heating systems
• Commercial water heaters
• High-output hydronic heating installations
• Any pressurized hot water system requiring ASME-style overpressure protection

Specifications

• SKU: 10-615-09
• Brand: Conbraco Industries
• Valve Type: Hot Water High Capacity Pressure Relief Valve
• Set Pressure: 45 PSI
• BTU Capacity: 2,114,000 BTU/hr
• Inlet Connection: 1″ Female NPT
• Outlet Connection: 1-1/4″ Female NPT
