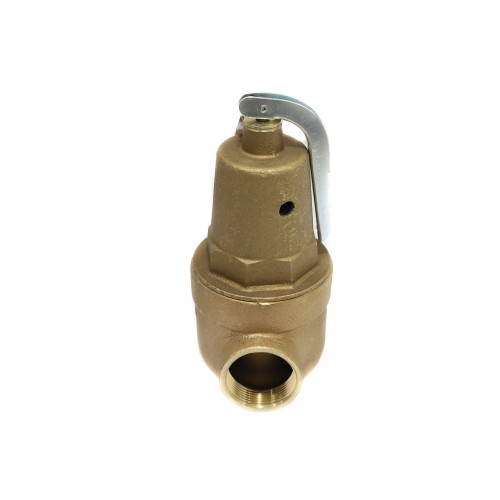

Conbraco Industries 10-616-25 1-1/4″ FNT x 1-1/2″ FNT 125 PSI Hot Water High Capacity Pressure Relief Valve

Description

Conbraco Industries 10-616-25 Hot Water High Capacity Pressure Relief Valve

The Conbraco Industries 10-616-25 is a high-capacity hot water pressure relief valve engineered to provide reliable overpressure protection for boilers, water heaters, and hydronic heating systems. Factory-set at 125 PSI, this valve delivers an impressive 8,668,000 BTU/hr relief capacity, making it well-suited for demanding commercial and industrial hydronic applications where system safety and performance are paramount.

Key Features

• 1-1/4″ Female NPT inlet connection for straightforward installation into existing pipework
• 1-1/2″ Female NPT outlet connection for efficient discharge flow
• Factory pre-set at 125 PSI — no field adjustment required
• High-capacity rating of 8,668,000 BTU/hr to handle large-volume hot water systems
• Designed for hot water heating applications including boilers and hydronic systems
• Durable construction built to withstand the rigors of continuous commercial service

Specifications

• SKU: 10-616-25
• Brand: Conbraco Industries
• Inlet Connection: 1-1/4″ Female NPT
• Outlet Connection: 1-1/2″ Female NPT
• Set Pressure: 125 PSI
• BTU Capacity: 8,668,000 BTU/hr
• Application: Hot Water / Hydronic Heating Systems

Application

The Conbraco 10-616-25 is ideal for use on high-output commercial boilers, large hot water storage systems, and hydronic heating installations where a high-capacity pressure relief valve is required to meet safety codes and protect system components from dangerous overpressure conditions.
