Conbraco Industries 10-618-10 Hot Water High Capacity Pressure Relief Valve, 50 PSI

Description

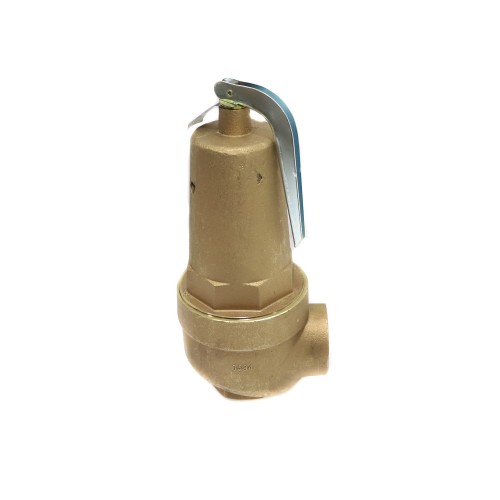

Conbraco Industries 10-618-10 Hot Water High Capacity Pressure Relief Valve

The Conbraco Industries 10-618-10 is a high-capacity hot water pressure relief valve engineered for demanding commercial and industrial hydronic heating applications. Factory-set at 50 PSI, this valve provides reliable overpressure protection for boilers, water heaters, and large-scale hot water systems where safety and performance are non-negotiable. With an impressive 8,900,000 BTU capacity rating, the 10-618-10 is built to handle the rigorous demands of high-output heating equipment.

Key Features

• Factory set at 50 PSI for consistent, reliable overpressure protection
• Massive 8,900,000 BTU capacity rating — ideal for high-output commercial and industrial systems
• 2″ Female NPT inlet connection for easy integration into existing piping
• 2-1/2″ Female NPT outlet for efficient discharge flow
• High-capacity design minimizes pressure buildup in large hydronic heating systems
• Durable construction engineered for long-term performance in hot water service

Specifications

• Brand: Conbraco Industries
• Model / SKU: 10-618-10
• Valve Type: Hot Water High Capacity Pressure Relief Valve
• Set Pressure: 50 PSI
• BTU Capacity: 8,900,000 BTU
• Inlet Connection: 2″ Female NPT
• Outlet Connection: 2-1/2″ Female NPT
• Application: Hot Water / Hydronic Heating Systems

Application

Designed for use on commercial boilers, large water heaters, and high-capacity hydronic heating systems, the Conbraco 10-618-10 pressure relief valve ensures safe operation by automatically releasing excess pressure before it reaches dangerous levels. The oversized outlet connection promotes unrestricted discharge flow, making it the right choice for high-BTU installations where standard-capacity valves fall short.
