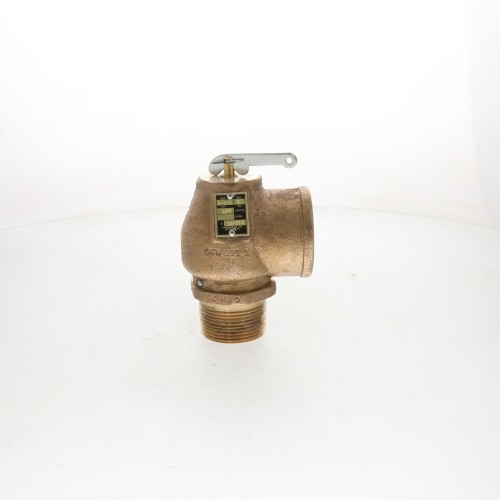

Conbraco Industries 13-213-B05 Section IV Steam Pressure Relief Valve, 5 PSI

Description

Overview

The Conbraco Industries 13-213-B05 is a Section IV Steam Pressure Relief Valve engineered for dependable overpressure protection in low-pressure steam heating systems. With a factory-set relief pressure of 5 PSI and a rated capacity of 699 pounds per hour (PPH), this valve delivers the precise, reliable performance demanded by commercial and residential boiler applications.

Key Features

• Section IV rated — designed and tested to ASME Section IV standards for steam heating boiler applications
• Set pressure of 5 PSI for accurate, consistent pressure relief
• High capacity rating of 699 pounds per hour (PPH) to handle demanding steam loads
• 1-1/4″ male NPT inlet connection for easy installation into standard boiler tappings
• 1-1/2″ female NPT outlet connection for straightforward discharge piping
• Robust construction built to withstand the rigors of steam system environments

Specifications

• SKU: 13-213-B05
• Brand: Conbraco Industries
• Valve Type: Steam Pressure Relief Valve
• Standard: ASME Section IV
• Set Pressure: 5 PSI
• Capacity: 699 Pounds Per Hour (PPH)
• Inlet Connection: 1-1/4″ Male NPT
• Outlet Connection: 1-1/2″ Female NPT

Application

Ideal for use on low-pressure steam boilers in residential and light commercial heating systems, the Conbraco 13-213-B05 provides critical safety protection by automatically relieving excess pressure before it can damage equipment or create hazardous conditions. The ASME Section IV rating ensures the valve meets the strict code requirements for steam heating boiler installations.
