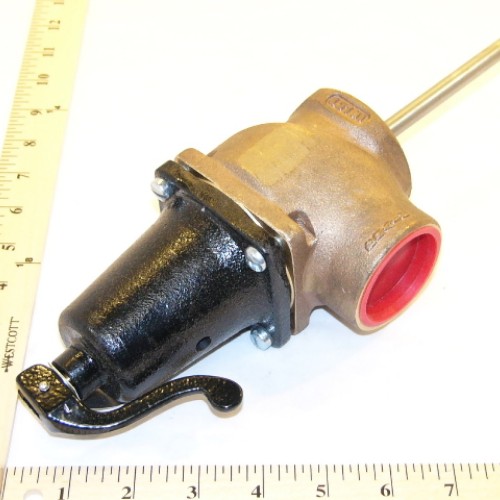

Conbraco Industries 18C-542-4-150 1-1/2″ T&P Relief Valve, 150 PSI, 210°F

Description

Overview

The Conbraco Industries 18C-542-4-150 is a heavy-duty Temperature and Pressure (T&P) Relief Valve engineered to safeguard hot water boilers and water heaters from dangerous over-temperature and over-pressure conditions. With a robust 6,050,000 BTU capacity rating, this valve is well-suited for demanding commercial and large residential hydronic heating applications.

Key Features

• 1-1/2″ Male NPT inlet connection for straightforward installation on standard boiler and water heater ports
• 1-1/2″ Female NPT outlet connection for easy discharge line attachment
• Factory-set pressure relief at 150 PSI to protect system integrity
• Factory-set temperature relief at 210°F to prevent dangerous overheating
• High-capacity 6,050,000 BTU rating handles large commercial and high-output heating systems
• 4″ probe length ensures accurate immersion into the water supply for reliable temperature sensing
• Durable construction built to withstand the rigors of continuous hydronic system operation

Specifications

• SKU: 18C-542-4-150
• Brand: Conbraco Industries
• Inlet Connection: 1-1/2″ Male NPT
• Outlet Connection: 1-1/2″ Female NPT
• Set Pressure: 150 PSI
• Set Temperature: 210°F
• BTU Capacity: 6,050,000 BTU/hr
• Probe Length: 4″
• Valve Type: Temperature and Pressure (T&P) Relief Valve

Applications

• Commercial and large residential hot water boilers
• High-output water heaters
• Hydronic heating systems requiring code-compliant pressure and temperature protection
