Description

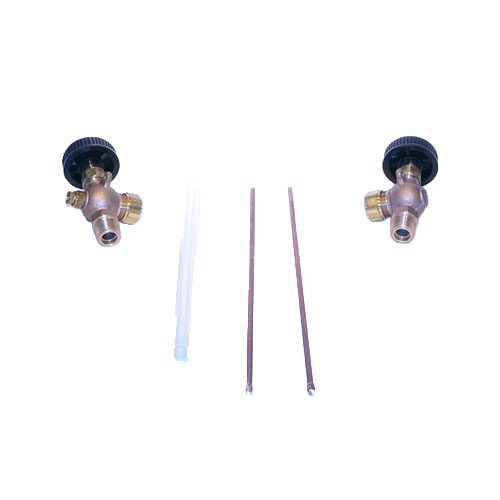

The Conbraco Industries 20-205-00 is a heavy-duty rough bronze water gauge engineered for reliable visual water level monitoring in hydronic, boiler, and steam system applications. Built with durable materials and precision-rated pressure and temperature performance, this gauge delivers long-lasting service in demanding mechanical environments.
Key Features
- 1/2″ NPT male connections for straightforward installation on standard pipe fittings
- 5/8″ OD x 12″ length standard glass for clear, unobstructed water level visibility
- Rough bronze body construction for corrosion resistance and durability
- EPDM glass seal provides excellent resistance to heat, steam, and water
- Teflon stem packing ensures a reliable, leak-free seal at the valve stems
- Composite plastic type handwheel for comfortable, tool-free operation
Pressure & Temperature Ratings
- Rated at 200 PSI @ 400°F for high-temperature steam and boiler service
- Rated at 400 PSI @ 100°F for high-pressure cold or ambient water service
Applications
- Boiler water level monitoring
- Hydronic heating systems
- Steam system sight glass installations
- Industrial and commercial plumbing systems requiring visual level indication
Specifications
- SKU: 20-205-00
- Brand: Conbraco Industries
- Connection Type: 1/2″ NPT Male
- Glass OD: 5/8″
- Glass Length: 12″
- Glass Type: Standard
- Body Material: Rough Bronze
- Seal Material: EPDM
- Stem Packing: Teflon
- Handwheel: Composite Plastic
- Max Pressure (High Temp): 200 PSI @ 400°F
- Max Pressure (Ambient): 400 PSI @ 100°F
