Description

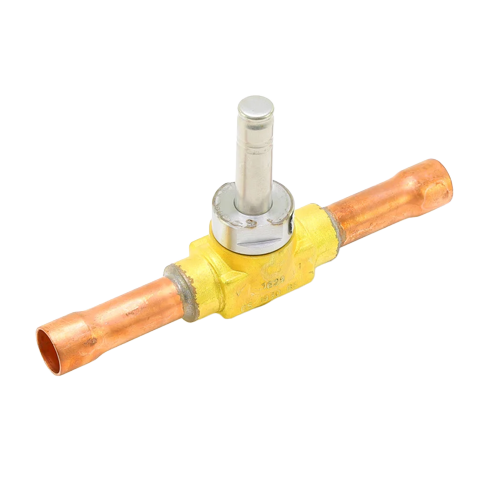

The Copeland 009694 is a pilot-operated, bi-directional refrigeration solenoid valve body engineered for reliable flow control in commercial refrigeration and HVAC systems. Designed as a 2-way normally closed (NC) valve with a 5/8″ sweat connection, this valve body delivers precise, energy-efficient refrigerant management across a wide range of system configurations.
Key Features
- 2-way normally closed (NC) design — valve closes when de-energized for fail-safe operation
- Pilot-operated mechanism for efficient actuation at higher pressures and flow rates
- Bi-flow capability allows refrigerant flow in either direction, ideal for heat pump and reverse-cycle applications
- 5/8″ sweat (ODF) connections for straightforward copper tube installation
- Compatible with R22 refrigerant at up to 10-ton capacity
- Compatible with R134a refrigerant at up to 9.4-ton capacity
- Cross-references: 200RB, GS-1930, 6T5
Specifications
- SKU: 009694
- Valve Type: Solenoid, 2-Way Normally Closed
- Operation: Pilot Operated
- Flow Direction: Bi-Flow
- Connection Size: 5/8″ Sweat (ODF)
- R22 Capacity: 10 Ton
- R134a Capacity: 9.4 Ton
- Cross-Reference Numbers: 200RB, GS-1930, 6T5
Applications
- Commercial refrigeration systems
- Heat pump and reverse-cycle HVAC systems
- Liquid line and suction line solenoid valve applications
- Multi-circuit refrigeration systems requiring bi-directional flow control
The Copeland 009694 solenoid valve body is a dependable solution for contractors and engineers who require precise refrigerant flow control with broad refrigerant compatibility. Its pilot-operated, bi-flow design makes it a versatile choice for both new installations and system retrofits.
