Description

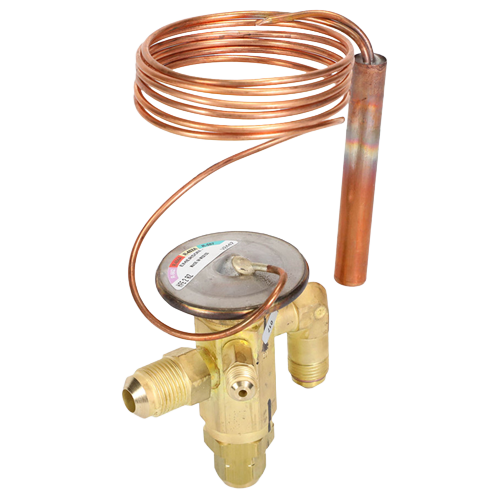

Copeland 053071 Externally Equalized Thermal Expansion Valve
The Copeland 053071 (Model HFE 2 RZ 5FT 3/8 x 1/2 SAE ANG) is a precision-engineered Thermal Expansion Valve (TXV) designed for low-temperature refrigeration applications. Featuring an angle body configuration and external equalization, this valve delivers accurate refrigerant metering and reliable system performance in demanding commercial and industrial refrigeration environments.
Key Features
- Model: HFE 2 RZ 5FT 3/8 x 1/2 SAE ANG
- Inlet connection: 3/8″ SAE flare
- Outlet connection: 1/2″ SAE flare
- Valve body style: Angle body configuration
- Capillary tube length: 5 feet
- Refrigerant compatibility: R502
- Rated capacity: 2 Ton
- Charge type: Low temperature
- Equalization type: Externally equalized for accurate superheat control in longer evaporators
Application & Benefits
The externally equalized design compensates for pressure drop across the evaporator, making this TXV ideal for multi-circuit or longer evaporator coils where internal equalization would result in poor superheat control. The low-temperature charge ensures proper bulb response and valve operation at sub-freezing evaporator conditions typical of commercial refrigeration, freezer, and cold storage systems.
Why Choose the Copeland 053071 TXV?
- Precise superheat control improves system efficiency and compressor protection
- Angle body design simplifies installation in tight or restricted piping layouts
- 5-foot capillary tube provides flexible bulb placement on the suction line
- SAE flare connections ensure leak-free, tool-friendly installation
- Engineered for R502 refrigerant systems in low-temperature commercial applications
Specifications Summary
- SKU: 053071
- Brand: Copeland
- Inlet: 3/8″ SAE Flare
- Outlet: 1/2″ SAE Flare
- Body Style: Angle
- Cap Tube Length: 5 ft
- Refrigerant: R502
- Capacity: 2 Ton
- Temperature Range: Low Temperature
- Equalization: External
