Description
Overview

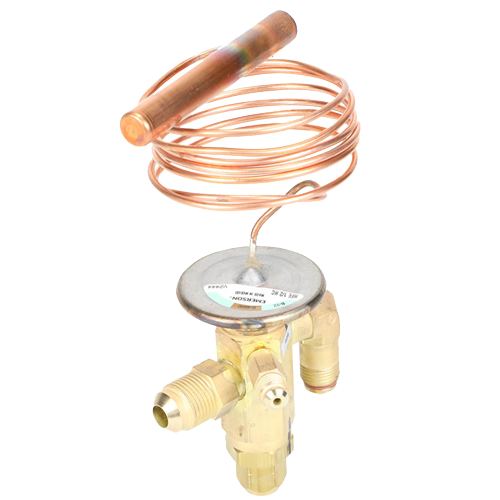

The Copeland 054361 is a precision-engineered externally equalized thermal expansion valve (TXV) designed for reliable refrigerant metering in residential and light commercial refrigeration and air conditioning systems. Rated at 1/2-ton capacity and optimized for medium temperature charge applications, this valve delivers accurate superheat control for peak system efficiency.
Key Features
- Externally equalized design for accurate superheat control across varying load conditions
- Compatible with R22 and R407C refrigerants
- 1/2-ton system capacity rating
- Medium temperature charge for standard A/C and refrigeration applications
- 3/8″ inlet x 1/2″ outlet connection sizes
- SAE flare fittings for secure, leak-resistant connections
- Straight body configuration for straightforward installation
- 5-foot capillary tube for flexible bulb placement and remote sensing
Specifications
- Model: HFE 1/2 HC 5FT 3/8 x 1/2 SAE S/T
- SKU: 054361
- Brand: Copeland
- Refrigerant Compatibility: R22 / R407C
- Capacity: 1/2 Ton
- Temperature Charge: Medium
- Equalization Type: External
- Body Style: Straight
- Inlet Connection: 3/8″ SAE Flare
- Outlet Connection: 1/2″ SAE Flare
- Capillary Tube Length: 5 Feet
Application
The Copeland 054361 TXV is ideal for use in split-system air conditioners, heat pumps, and refrigeration systems utilizing R22 or the popular R407C drop-in replacement refrigerant. The externally equalized design makes it especially well-suited for systems with distributor assemblies or longer evaporator circuits where pressure drop across the coil is a factor. The 5-foot capillary tube provides installation flexibility, allowing the sensing bulb to be positioned accurately on the suction line for optimal superheat measurement.
