Description

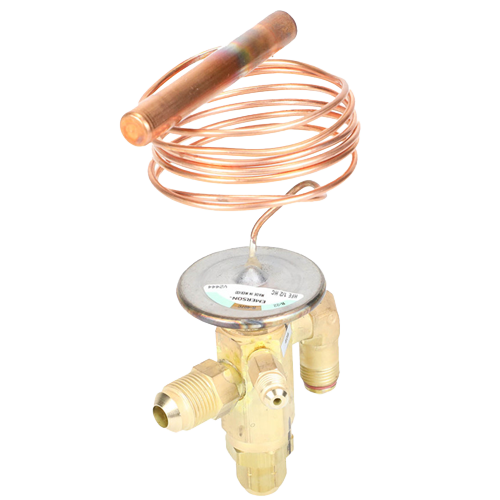

The Copeland 054395 (TCLE 3 HC) is a 3-ton, R22 refrigerant, externally equalized Thermal Expansion Valve (TXV) designed for medium-temperature refrigeration and air conditioning applications. Supplied without a flange (VLF — Valve Less Flange), it is engineered for precise refrigerant metering and superior superheat control in demanding HVAC/R systems.
Key Features
- 3-ton capacity for medium-temperature refrigeration applications
- Compatible with R22 refrigerant
- Medium-temperature charge for reliable operation across standard refrigeration temperature ranges
- SAE external equalizer port for accurate downstream pressure sensing
- 5-foot (5 ft) capillary tube length for flexible installation and remote bulb placement
- Externally equalized design ensures consistent superheat control regardless of evaporator pressure drop
- Valve Less Flange (VLF) configuration — no flange included for streamlined integration
Application
The externally equalized TXV is ideal for evaporators with significant pressure drop, multi-circuit coils, or distributor-fed systems where internal equalization would result in inaccurate superheat control. The 5-foot capillary tube provides installation flexibility for remote sensing bulb placement on the suction line.
Specifications
- SKU / Part Number: 054395
- Model: TCLE 3 HC
- Capacity: 3 Ton
- Refrigerant: R22
- Temperature Charge: Medium Temperature
- Equalization Type: External (Externally Equalized)
- Equalizer Connection: SAE External Port
- Capillary Tube Length: 5 Feet (5 FT)
- Flange Configuration: VLF (Valve Less Flange)
- Brand: Copeland
Why Choose Copeland?
Copeland is a trusted name in HVAC/R components, known for precision-engineered refrigeration controls and expansion valves that deliver long service life and reliable performance. The TCLE series TXVs are widely used by HVAC technicians and refrigeration professionals for their consistent superheat regulation and compatibility with standard R22 systems.
