Description

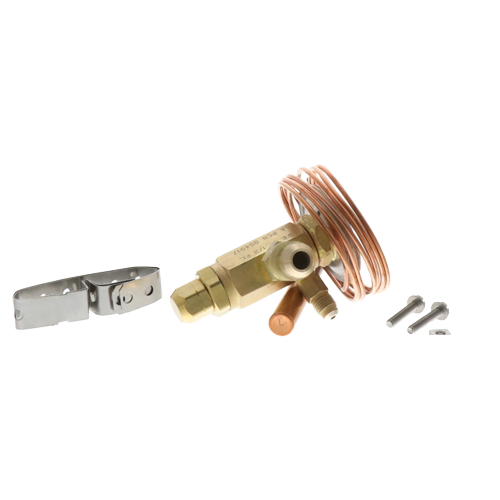

Copeland 054917 Externally Equalized Thermal Expansion Valve
The Copeland 054917 is a precision-engineered Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in medium-temperature refrigeration and air conditioning applications. Built to exacting standards, this valve delivers consistent superheat control and system efficiency in demanding HVAC/R environments.
Key Features
- Model: HFE 1 1/2 FC 5FT 3/8 x 1/2 SAE ANG
- Inlet connection: 3/8″ SAE flare
- Outlet connection: 1/2″ SAE flare
- Angle body design for flexible installation in tight spaces
- 5-foot capillary tube for remote bulb placement
- Rated capacity: 1.5 tons (R12 refrigerant)
- Medium temperature charge — optimized for medium-temp applications
- Externally equalized for accurate superheat control in systems with higher pressure drops across the evaporator
Application & Compatibility
- Designed for use with R12 refrigerant systems
- Ideal for medium-temperature refrigeration and comfort cooling applications
- External equalizer connection compensates for evaporator pressure drop, ensuring stable superheat settings
- Angle body configuration simplifies installation where straight-through valves are impractical
- 5-foot capillary tube provides flexibility in remote bulb mounting
Specifications
- SKU: 054917
- Brand: Copeland
- Model Number: HFE 1 1/2 FC 5FT 3/8 x 1/2 SAE ANG
- Inlet: 3/8″ SAE Flare
- Outlet: 1/2″ SAE Flare
- Body Style: Angle
- Capillary Tube Length: 5 feet
- Refrigerant: R12
- Capacity: 1.5 Ton
- Charge Type: Medium Temperature
- Equalization: External
Why Choose the Copeland 054917 TXV?
Copeland is a trusted name in HVAC/R components, and the 054917 TXV reflects that heritage of quality. The externally equalized design makes it the right choice for evaporators with distributor assemblies or longer refrigerant circuits where internal equalization would result in poor superheat control. The angle body and 5-foot capillary tube add installation versatility, making this valve a go-to solution for service technicians and system designers alike.
