Description
Overview

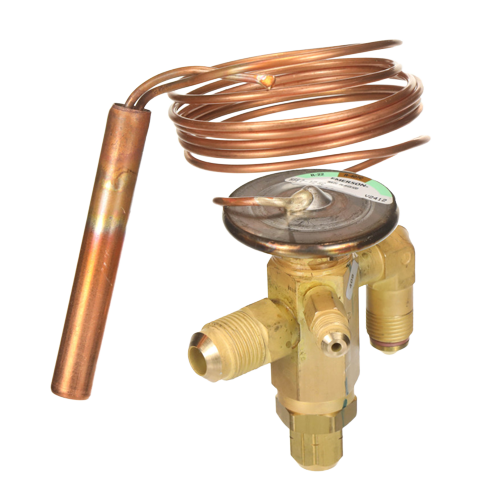

The Copeland 054950 is a precision-engineered Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in medium-temperature HVAC and refrigeration applications. Carrying model designation HFE 2.5 HC 5FT 3/8 x 1/2 SAE ANG, this valve delivers consistent superheat control and system efficiency across a wide range of operating conditions.
Key Features
- Capacity: 2.5 Ton — sized for residential and light commercial systems
- Compatible Refrigerants: R22 and R407C for broad system compatibility
- Temperature Range: Medium temperature charge for standard cooling applications
- Body Style: Angle body configuration for flexible installation in tight spaces
- Connections: 3/8″ inlet x 1/2″ outlet, SAE flare fittings for leak-free connections
- Capillary Tube: 5-foot capillary tube for remote bulb placement flexibility
- Equalization: Externally equalized design for accurate superheat control in systems with higher pressure drops across the evaporator
Benefits
- Externally equalized design compensates for evaporator pressure drop, ensuring precise superheat regulation and improved system efficiency
- Dual refrigerant compatibility (R22/R407C) makes this valve suitable for new installations and retrofit applications
- SAE flare connections provide a secure, tool-friendly installation with no brazing required at the valve body
- Angle body design simplifies routing in space-constrained equipment cabinets and evaporator coil assemblies
- 5-foot capillary tube allows optimal bulb placement on the suction line for accurate temperature sensing
Specifications
- SKU: 054950
- Model: HFE 2.5 HC 5FT 3/8 x 1/2 SAE ANG
- Brand: Copeland
- Valve Type: Thermal Expansion Valve (TXV)
- Body Style: Angle Body
- Capacity: 2.5 Ton
- Refrigerant: R22 / R407C
- Temperature Charge: Medium Temperature
- Equalization: External
- Inlet Connection: 3/8″ SAE Flare
- Outlet Connection: 1/2″ SAE Flare
- Capillary Tube Length: 5 Feet
