Description

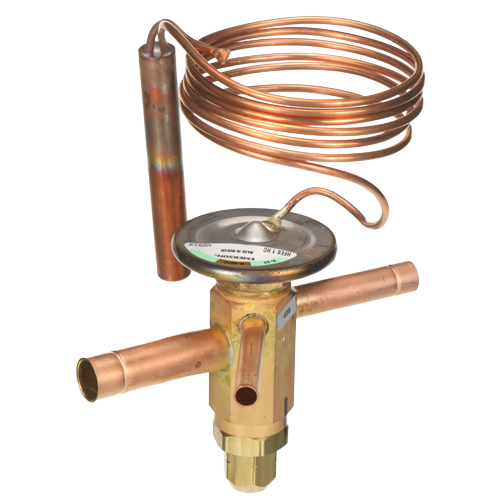

The Copeland 055708 (Model HFES 1 HC 5FT 3/8 x 1/2 ODF S/T) is a precision-engineered Thermal Expansion Valve (TXV) designed for reliable refrigerant metering in medium-temperature HVAC and refrigeration applications. With a straight body configuration and external equalizer, this valve delivers accurate superheat control across a wide range of operating conditions, making it a trusted choice for service technicians and installing contractors alike.
Key Features
- Straight body design for straightforward inline installation
- 3/8″ inlet x 1/2″ outlet sweat (ODF) connections for secure, leak-free copper tube joints
- 5-foot capillary tube with remote sensing bulb for precise evaporator superheat sensing
- Externally equalized design compensates for evaporator pressure drop, improving system efficiency and stability
- Medium temperature charge optimized for standard air conditioning and refrigeration evaporator temperature ranges
- Compatible with R-22 and R-407C refrigerants, supporting both legacy and transitional system servicing
- 1-ton (12,000 BTU/hr) nominal capacity rating
Specifications
- SKU: 055708
- Model: HFES 1 HC 5FT 3/8 x 1/2 ODF S/T
- Brand: Copeland
- Valve Type: Thermal Expansion Valve (TXV), Externally Equalized
- Body Style: Straight
- Capacity: 1 Ton (Medium Temperature)
- Refrigerant Compatibility: R-22, R-407C
- Inlet Connection: 3/8″ ODF Sweat
- Outlet Connection: 1/2″ ODF Sweat
- Capillary Tube Length: 5 Feet
- Temperature Charge: Medium
- Equalization: External
Application
This TXV is ideal for use in residential and light commercial split systems, package units, and refrigeration equipment operating on R-22 or R-407C refrigerant. The external equalizer port connection is essential for evaporators with a significant pressure drop across the coil, ensuring the valve responds accurately to true evaporator outlet conditions rather than inlet pressure alone. The 5-foot capillary tube provides installation flexibility, allowing the sensing bulb to be properly positioned on the suction line for optimal superheat control.
