Description

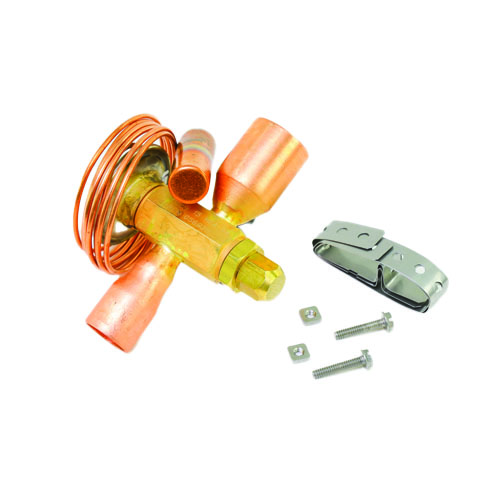

The Copeland 056825 is a heavy-duty Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in medium-temperature commercial refrigeration and air conditioning applications. Designed to handle the demands of 15-ton systems, this externally equalized valve delivers precise superheat control for consistent, efficient system performance.
Key Features
- 15-ton capacity rating for large commercial refrigeration and HVAC systems
- Compatible with R-22 and R-407C refrigerants for broad application flexibility
- Medium-temperature charge optimized for standard refrigeration and comfort cooling applications
- Externally equalized design ensures accurate superheat control across longer evaporators and high-pressure-drop coils
- 7/8″ x 1-1/8″ ODF sweat connections for straightforward copper tube installation
- 5-foot capillary tube provides installation flexibility for remote bulb placement
- Part number HFES 15 HC 5FT 7/8×1-1/8 ODF S/T
Application
The external equalizer port compensates for evaporator pressure drop, making this TXV ideal for use with distributor-fed coils and longer evaporator circuits common in commercial systems. The 5-foot capillary tube allows the sensing bulb to be positioned precisely at the evaporator outlet for accurate superheat sensing, even in challenging installation layouts.
Specifications
- SKU: 056825
- Brand: Copeland
- Model: HFES 15 HC 5FT 7/8×1-1/8 ODF S/T
- Capacity: 15 Ton
- Refrigerant: R-22 / R-407C
- Temperature Range: Medium Temperature
- Equalization: External
- Inlet Connection: 7/8″ ODF Sweat
- Outlet Connection: 1-1/8″ ODF Sweat
- Capillary Tube Length: 5 Feet
