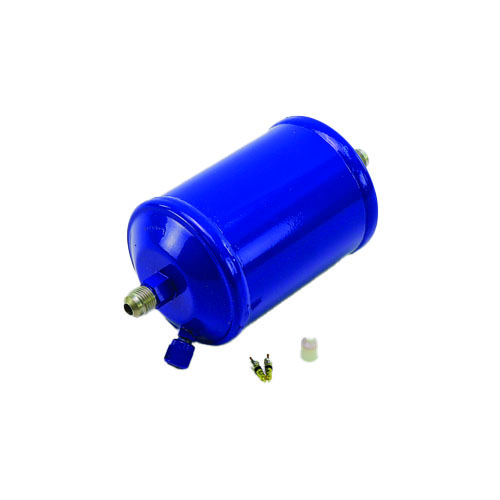

Copeland ASF45F3VV Suction Line Filter Drier with Dual Access Valves
The Copeland ASF45F3VV (SKU 059999) is a heavy-duty suction line filter drier engineered to protect refrigeration and air conditioning compressors from moisture, acid, and particulate contamination. Featuring dual access valves for convenient system diagnostics and service without full shutdown, this filter drier is a reliable choice for both new installations and system burnout recovery applications.
Key Features
- Model: ASF45F3VV — suction line filter drier with dual access valves
- Connection size: 3/8″ SAE flare fittings for leak-free, tool-ready installation
- Drier volume: 45 cubic inches for high-capacity moisture and acid removal
- Filtration rating: 40 micron to capture particulates and protect compressor internals
- Maximum working pressure: 500 PSI for safe use across a wide range of refrigerant systems
- Dual access valve ports allow pressure testing, refrigerant sampling, and system diagnostics
- Designed for suction line placement to safeguard compressors from contamination
- Ideal for post-burnout cleanup and preventive maintenance applications
Applications
- Residential and light commercial air conditioning systems
- Refrigeration systems requiring suction-side filtration
- System burnout recovery and cleanup procedures
- Installations where in-line service access is required
Specifications
- SKU: 059999
- Model: ASF45F3VV
- Brand: Copeland
- Connection: 3/8″ SAE (Flare)
- Volume: 45 cubic inches
- Micron Rating: 40 micron
- Max Pressure: 500 PSI
- Valve Configuration: Dual Access Valves
- Filter Type: Suction Line Filter Drier
