Description

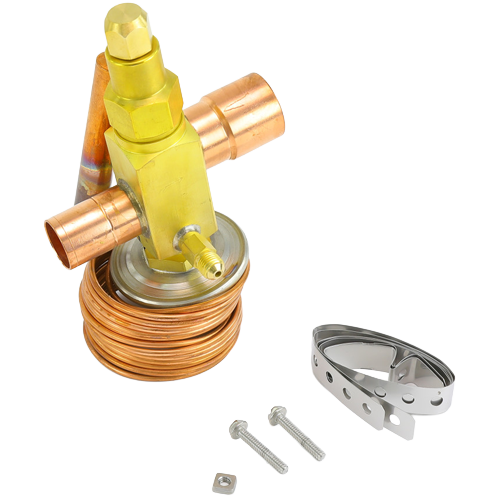

The Copeland 062727 (Model TRAE+ 30 HC 10FT 7/8 X 1 1/8 ODF S/T) is a heavy-duty externally equalized thermal expansion valve engineered for large commercial refrigeration and air conditioning systems. Designed for use with R22 and R407C refrigerants, this straight-body TXV delivers precise refrigerant metering at a 30-ton capacity rating, making it an ideal choice for demanding medium-temperature applications.
Key Features
- 30-ton refrigerant capacity rating for large commercial systems
- Compatible with R22 and R407C refrigerants
- Medium temperature charge for reliable operation across a wide range of conditions
- Externally equalized design for accurate superheat control in systems with significant evaporator pressure drop
- Straight body configuration for straightforward installation
- 7/8″ ODF inlet x 1-1/8″ ODF outlet sweat (solder) connections
- 10-foot capillary tube for flexible bulb placement and remote sensing
Specifications
- SKU: 062727
- Model: TRAE+ 30 HC 10FT 7/8 X 1 1/8 ODF S/T
- Brand: Copeland
- Capacity: 30 Ton
- Refrigerant: R22 / R407C
- Temperature Charge: Medium
- Equalization: External
- Body Style: Straight
- Inlet Connection: 7/8″ ODF Sweat
- Outlet Connection: 1-1/8″ ODF Sweat
- Capillary Tube Length: 10 Feet
Application
The externally equalized design of this TXV is particularly well-suited for evaporators with a notable pressure drop across the refrigerant circuit, ensuring accurate superheat sensing and stable system performance. The 10-foot capillary tube provides the flexibility needed to position the sensing bulb at the optimal location on the suction line. This valve is a trusted component in commercial HVAC and refrigeration installations where consistent capacity control and long-term reliability are essential.
