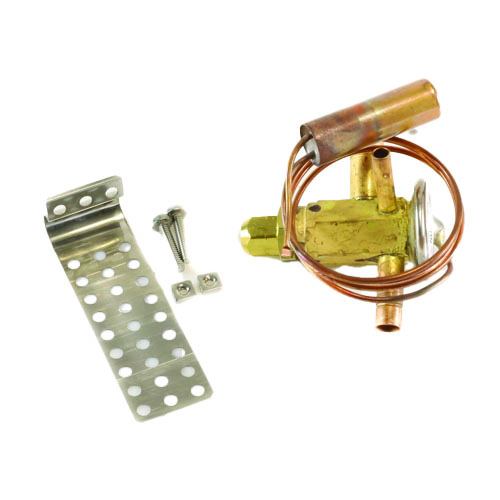

Copeland 065581 Thermal Expansion Valve with Internal Check Valve
The Copeland 065581 is a high-performance Thermal Expansion Valve (TXV) engineered specifically for R410A refrigerant systems. Designed for straight-body, externally equalized applications, this valve delivers precise refrigerant metering at a 3-ton capacity rating, making it an ideal replacement or OEM component for residential and light commercial air conditioning systems.
Key Features
- Refrigerant: R410A compatible
- Capacity: 3 Ton
- Connection Size: 3/8″ inlet x 1/2″ outlet
- Connection Type: Sweat (ODF) — both inlet and outlet
- Body Style: Straight body configuration
- Capillary Tube Length: 30 inches for flexible bulb placement
- Maximum Operating Pressure (MOP): 195 PSI charge for compressor protection
- Equalization: Externally equalized for accurate superheat control in longer or distributed evaporator circuits
- Internal Check Valve: Built-in check valve enables reverse-cycle (heat pump) operation without the need for a separate check valve
- Part Number / Model: AACE 3 SW195 30IN 3/8 X 1/2 ODF S/T
Product Details
The externally equalized design ensures accurate superheat sensing even when evaporator pressure drop is a factor, improving system efficiency and reliability. The integrated internal check valve simplifies installation in heat pump systems by eliminating additional components and reducing potential leak points. The 30″ capillary tube provides ample flexibility for bulb positioning on the suction line.
Applications
- Residential and light commercial split-system air conditioners
- Heat pump systems requiring reverse-cycle refrigerant flow
- R410A refrigeration and cooling systems rated at 3-ton capacity
- Replacement TXV for systems requiring MOP 195 PSI protection
Why Choose the Copeland 065581?
Copeland is a trusted name in HVAC refrigeration components. The 065581 TXV combines precision metering, built-in check valve functionality, and R410A compatibility into a single, reliable valve — reducing installation complexity and supporting long-term system performance.
