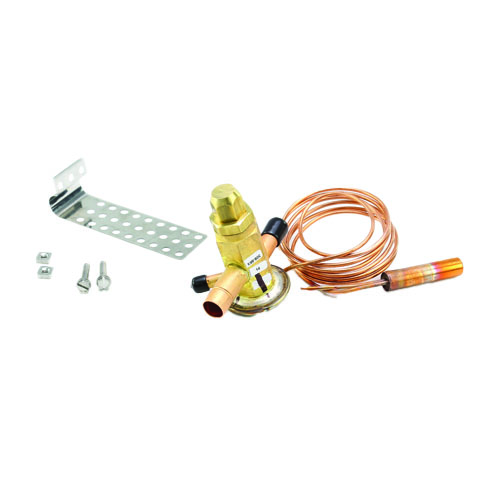

Copeland 065635 1-Ton TXV, R22/R407C, 3/8″ x 1/2″ Sweat, 5′ Cap Tube

Description

Copeland 065635 Thermal Expansion Valve Overview

The Copeland 065635 (Model AAE 1 HC 5FT 3/8 x 1/2 ODF S/T) is a precision-engineered thermal expansion valve (TXV) designed for reliable refrigerant metering in medium-temperature HVAC and refrigeration applications. Rated at 1 ton of capacity and compatible with R22 and R407C refrigerants, this valve delivers consistent superheat control to maximize system efficiency and protect the compressor.

Key Features

• Valve type: Thermal Expansion Valve (TXV), straight body design
• Refrigerant compatibility: R22 and R407C
• Capacity: 1 Ton
• Temperature charge: Medium temperature
• Equalization: Externally equalized for accurate superheat control in longer evaporator circuits
• Inlet connection: 3/8″ ODF sweat
• Outlet connection: 1/2″ ODF sweat
• Capillary tube length: 5 feet for flexible bulb placement
• Connection method: Sweat (ODF) for secure, leak-free installation

Application & Benefits

The externally equalized design makes this TXV ideal for evaporators with significant pressure drop across the coil, ensuring precise superheat regulation regardless of load variation. The 5-foot capillary tube provides installation flexibility, allowing the sensing bulb to be properly positioned on the suction line. The sweat connections deliver a robust, permanent joint compatible with standard copper tubing.

Specifications

• SKU: 065635
• Model: AAE 1 HC 5FT 3/8 x 1/2 ODF S/T
• Brand: Copeland
• Refrigerants: R22 / R407C
• Capacity: 1 Ton
• Temperature Charge: Medium
• Body Style: Straight
• Equalization: External
• Inlet Size: 3/8″ ODF Sweat
• Outlet Size: 1/2″ ODF Sweat
• Capillary Tube Length: 5 Feet
