Description

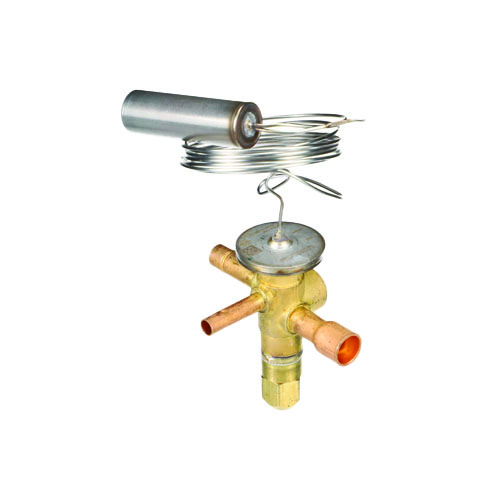

Copeland NXT Series Thermal Expansion Valve — SKU 091022
The Copeland 091022 is a high-performance NXT Series Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in R410A systems. Designed for residential and light commercial HVAC applications, this valve delivers precise superheat control and consistent system efficiency at a 3-ton capacity rating.
Key Features
- NXT Series TXV designed specifically for R410A refrigerant systems
- 3-ton capacity rating for residential and light commercial applications
- 3/8″ ODF inlet x 1/2″ ODF outlet sweat (ODF) connections for easy field installation
- 5-foot capillary tube for flexible bulb placement and routing
- Adjustable superheat setting allows field tuning to match system requirements
- Straight-through body design for streamlined refrigerant flow and reduced pressure drop
- 1/4″ ODF external equalizer connection for accurate superheat sensing in longer evaporator circuits
Product Specifications
- SKU / Part Number: 091022
- Model: NBE 3 ZAA 5FT 3/8×1/2 ODF S/T
- Series: NXT
- Refrigerant: R410A
- Capacity: 3 Ton
- Inlet Connection: 3/8″ ODF (Sweat)
- Outlet Connection: 1/2″ ODF (Sweat)
- Capillary Tube Length: 5 Feet
- Superheat: Adjustable
- Body Style: Straight Through
- Equalizer: 1/4″ ODF External
Application & Benefits
The external equalizer port ensures accurate superheat measurement across the full evaporator coil, making this TXV ideal for systems with distributor-fed evaporators or longer refrigerant circuits where pressure drop across the coil is a factor. The adjustable superheat feature gives technicians the flexibility to fine-tune system performance during commissioning or service, reducing callbacks and improving energy efficiency. The straight-through body minimizes turbulence and pressure loss, supporting optimal system capacity and compressor protection.
Why Choose the Copeland NXT Series TXV?
Copeland’s NXT Series valves are built to meet the demands of modern R410A systems, offering consistent metering performance, durable construction, and installer-friendly features. Whether you’re performing a new installation or replacing an existing valve, the 091022 is a dependable choice for 3-ton split system applications.
