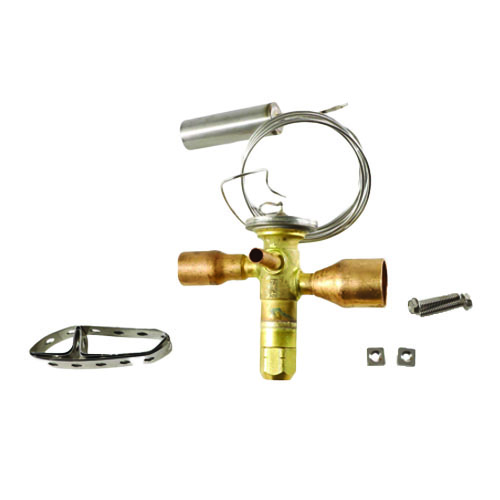

Copeland NXT Series Thermal Expansion Valve — SKU 091056
The Copeland 091056 is a high-performance NXT Series Thermal Expansion Valve (TXV) engineered for reliable refrigerant metering in R410A systems. Designed with a straight-through body configuration and adjustable superheat, this valve delivers precise refrigerant flow control to maximize system efficiency and protect compressor operation across a wide range of operating conditions.
Key Features
- NXT Series straight-through body design for streamlined installation
- Compatible with R410A refrigerant
- Rated capacity: 1.5 Ton
- Inlet connection: 5/8″ ODF (sweat/solder)
- Outlet connection: 7/8″ ODF (sweat/solder)
- 5-foot capillary tube for flexible remote bulb placement
- Adjustable superheat setting for field-tunable performance
- 1/4″ ODF external equalizer port for accurate pressure sensing in longer evaporator circuits
Product Specifications
- SKU / Part Number: 091056
- Model: NBE 15 ZAA 5FT 5/8×7/8 ODF S/T
- Series: NXT
- Refrigerant: R410A
- Capacity: 1.5 Ton
- Inlet Connection: 5/8″ ODF Sweat
- Outlet Connection: 7/8″ ODF Sweat
- Capillary Tube Length: 5 Feet
- Superheat: Adjustable
- Body Style: Straight Through
- External Equalizer: 1/4″ ODF
- Brand: Copeland
Application
This TXV is ideal for use in residential and light commercial split-system air conditioning and heat pump applications utilizing R410A refrigerant. The external equalizer connection makes it well-suited for evaporator coils with higher pressure drops, ensuring accurate superheat control regardless of coil circuit length. The adjustable superheat feature allows technicians to fine-tune performance during commissioning or service calls without replacing the valve.
