Description

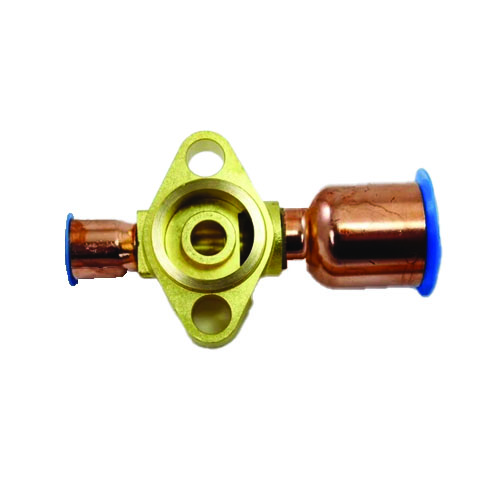

The Copeland 094038 (X6346-18) is a thermostatic expansion valve (TXV) engineered for reliable refrigerant metering in TCL and TCLE valve-type refrigeration and air conditioning systems. Featuring a straight-thru body flow design, this valve delivers precise superheat control and consistent system performance across a wide range of operating conditions.
Connection Specifications
- Inlet: 5/8″ ODF (Sweat) connection
- Outlet: 1-1/8″ ODF (Sweat) connection
- Connection Type: Sweat (brazed) for secure, leak-free installation
Valve Design
- Body Flow: Straight-thru configuration for streamlined refrigerant flow
- Valve Type: TCL/TCLE compatible
- Manufacturer Part Number: X6346-18
- SKU: 094038
Key Features & Benefits
- Straight-thru body flow design minimizes pressure drop and optimizes system efficiency
- Sweat (ODF) connections ensure a robust, leak-resistant installation
- Engineered for TCL/TCLE valve-type systems for drop-in compatibility
- Precision refrigerant metering helps maintain proper superheat for compressor protection
- Built to Copeland’s exacting quality standards for long service life in demanding HVAC/R applications
Applications
- Commercial and residential air conditioning systems
- Refrigeration systems utilizing TCL/TCLE valve configurations
- New installations and field replacement of worn or failed expansion valves
