Description

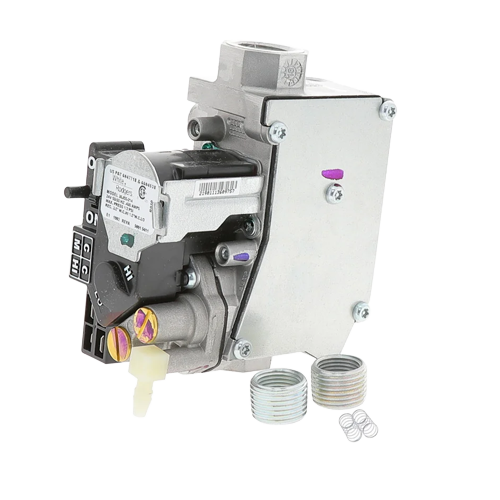

Upgrade or replace your furnace's gas valve with the White Rodgers 36J55-214, a versatile combination gas valve engineered for today's high-efficiency, non-piloted intermittent ignition systems. Designed for use with both Hot Surface Ignition (HSI) and Direct Spark Ignition (DSI) systems, this two-stage slow opening valve provides precise, controlled gas delivery that supports the staged heating demands of modern gas furnaces while keeping operation quiet and efficient. Operating on 24 VAC with a straight-through 1/2" x 1/2" NPT connection, it features a hi-fire regulator calibrated to 3.5" W.C. at 100,000 BTU/hr for natural gas and a lo-fire regulator calibrated to 1.5" W.C., giving technicians the flexibility needed across a wide range of system configurations. The valve ships with inlet and outlet pressure taps for easy field verification, 1/2" x 3/8" NPT reducer bushings, a plastic hose barb for 1/4" flexible tubing, and an LP gas conversion kit for propane applications — making it a truly all-in-one solution.
Key Features:
- Voltage: 24 VAC, 60 Hz
- Connection size: 1/2" x 1/2" NPT (straight-through)
- Valve type: Two-stage, slow opening
- Compatible ignition systems: HSI (Hot Surface) and DSI (Direct Spark)
- Hi-fire regulator: 3.5" ± 0.3" W.C. @ 100,000 BTU/hr (natural gas)
- Lo-fire regulator: 1.5" ± 0.3" W.C.
- Natural gas inlet pressure range: 2.5"–5.0" W.C.; LP: 6.0"–12.0" W.C.
- BTU rating: 226,800 BTU
- Includes: LP gas conversion kit, inlet/outlet pressure taps, 1/2" x 3/8" NPT reducer bushings, plastic hose barb for 1/4" flexible tubing
- Replaces: 36G55-214 and multiple 36E/36G series valves
