Description

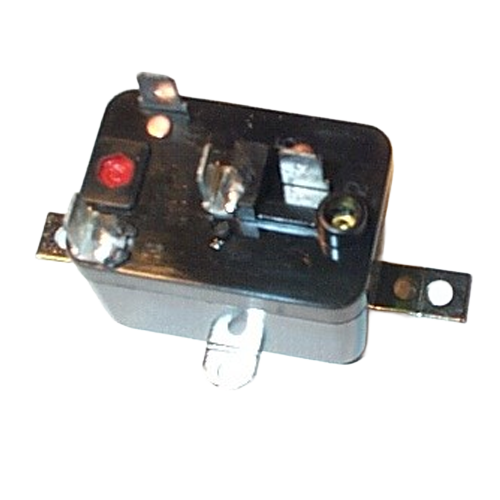

The Copeland 90-292Q fan relay is a double-pole, double-throw (DPDT) switching relay designed for reliable control of fan motors and other HVAC loads. Featuring a 120V coil, this relay is commonly used in furnaces, air handlers, and condensing units where multiple circuits need to be controlled simultaneously. Its DPDT configuration allows for flexible wiring and control of two separate circuits, making it suitable for more complex control applications. The compact design supports easy installation and replacement, while providing consistent switching performance in demanding HVAC environments.
Key Features:
- 120V coil voltage for standard HVAC control circuits
- DPDT (2-pole, double-throw) switching configuration
- Controls multiple circuits simultaneously
- Suitable for fan motors, blowers, and general HVAC loads
- Compact design for straightforward installation and service replacement
- Reliable performance in residential and light commercial HVAC systems
