Description

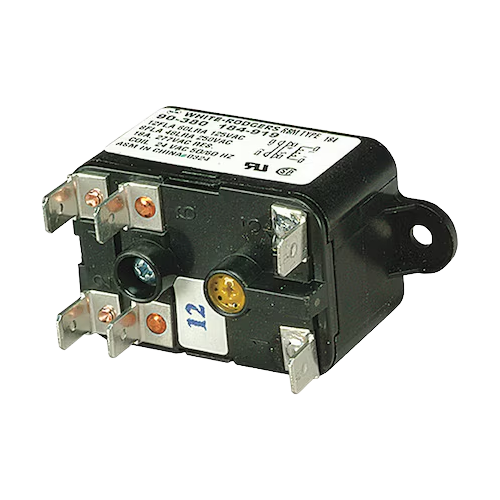

The Copeland 90-380S1 is a Type 184 fan relay with a 24VAC coil rated at 50/60Hz, featuring both single-pole normally open and single-pole normally closed contact configurations, with a coil resistance of 77 ohms DC and a coil current draw of 125mA, designed for fan control and blower switching applications in residential and light commercial HVAC systems. The 24VAC coil accepts the standard low-voltage control signal from a thermostat or control board to energize the relay, making it directly compatible with conventional HVAC control circuit architectures without the need for an intermediate control transformer or voltage conversion. The dual SPNO and SPNC contact configuration provides switching flexibility for both energize-to-run and energize-to-stop fan control circuit topologies within a single relay body, supporting a wide range of furnace, air handler, and ventilation fan control wiring schemes. The 77-ohm DC coil resistance and 125mA current draw are critical electrical specifications for cross-referencing replacement relays and verifying compatibility with the control board or transformer output supplying the relay coil circuit. As an OEM-quality White-Rodgers Type 184 replacement, the 90-380S1 is a direct-fit service component for HVAC fan control circuits where the original relay has failed or requires substitution during control system service.
Key Features
- 24VAC coil rated for 50/60Hz operation accepts standard HVAC thermostat and control board low-voltage switching signals
- Type 184 fan relay classification supports accurate cross-referencing and field identification during replacement
- SPNO and SPNC dual contact configuration supports both energize-to-run and energize-to-stop fan control circuit topologies
- 77-ohm DC coil resistance is a critical cross-reference specification for verifying control board and transformer output compatibility
- 125mA coil current draw supports compatibility verification with low-voltage control circuit capacity
- Direct 24VAC coil compatibility eliminates need for intermediate control transformer or voltage conversion in standard HVAC control circuits
- OEM-quality White-Rodgers replacement ensures correct electrical characteristics and mechanical fit for Type 184 fan relay applications
- Suited for furnace, air handler, and ventilation fan control circuit service and replacement in residential and light commercial HVAC systems
