Description

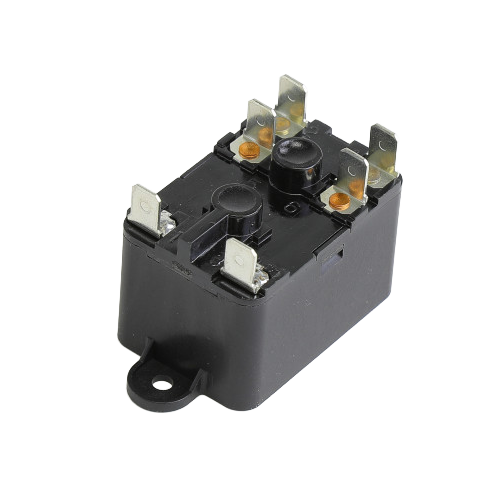

The Copeland 90-382 fan relay (Type 184) is a versatile switching relay designed for controlling fan motors and HVAC loads in residential and light commercial systems. Featuring a 120V AC coil (50/60 Hz), this relay provides both normally open (SPNO) and normally closed (SPNC) contacts for flexible control configurations. With an approximate coil resistance of 2000 ohms and a low current draw of around 25 mA, it supports efficient operation within standard control circuits. The 90-382 is commonly used in furnaces, air handlers, and other HVAC equipment requiring dependable relay performance and straightforward replacement.
Key Features:
- 120V AC coil, 50/60 Hz operation
- SPNO/SPNC contact configuration for flexible control
- Type 184 fan relay design
- Approximate coil resistance: 2000 ohms
- Low coil current draw: ~25 mA
- Suitable for fan motors, blowers, and HVAC control circuits
- Ideal for residential and light commercial applications
