Description

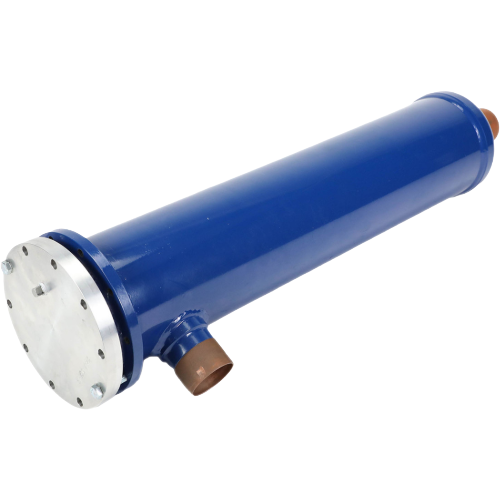

The Copeland ADKS40017T (SKU 032105) is a heavy-duty liquid and suction line filter drier engineered for reliable refrigerant system protection. Designed for use in both liquid and suction line applications, this drier removes moisture, acid, and contaminants that can damage compressors and other system components — helping extend equipment life and maintain system efficiency.
Key Features
- Dual-purpose design suitable for liquid line and suction line applications
- 2-1/8″ sweat (ODF) connections for secure, leak-free installation
- 40 cubic inch internal volume for high-capacity moisture and contaminant removal
- 1/4″ FPT access connection for easy pressure testing and system diagnostics
- 4-core capacity (cores sold separately, not included)
- 500 PSI maximum working pressure
- Compatible with a wide range of refrigerants (not suitable for R-410A applications above 500 psig)
Specifications
- Model: ADKS40017T
- SKU: 032105
- Connection Type: Sweat (ODF)
- Connection Size: 2-1/8″
- Internal Volume: 40 cubic inches
- Access Connection: 1/4″ FPT
- Core Capacity: 4 cores (not included)
- Maximum Working Pressure: 500 PSI
- Application: Liquid and suction line filter drier
Application Notes
This filter drier is ideal for commercial and residential refrigeration and air conditioning systems requiring robust filtration and moisture control. The replaceable core design allows for easy field servicing without replacing the entire shell. Note: Not suitable for R-410A applications operating above 500 psig.
