Description

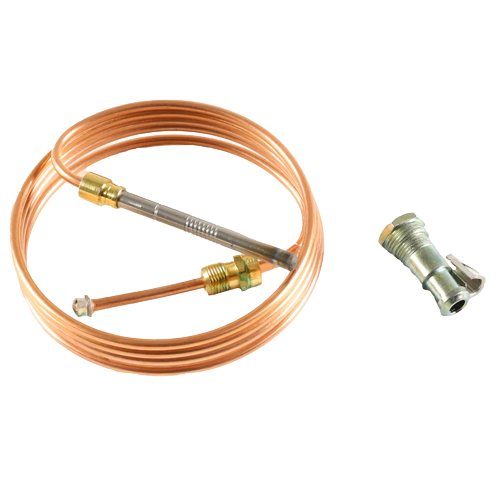

The Copeland H06E-48 is a 48-inch replacement thermocouple designed for use in millivolt heating systems, including standing pilot furnaces, boilers, water heaters, and gas fireplaces that operate on 30-millivolt pilot safety circuits. The thermocouple functions as the pilot safety sensing device, generating a small millivolt signal from the pilot flame heat to hold the gas valve open. When the pilot extinguishes, the signal drops and the valve closes, preventing unburned gas from entering the heat exchanger. At 48 inches in length, this thermocouple accommodates installations where the pilot assembly and gas valve are farther apart, offering flexibility across a wide range of equipment configurations. The universal connection tip and standard threading make it a practical cross-reference replacement for many OEM thermocouples used in residential and light commercial heating equipment.
Key Features
- 30mV output rating compatible with standard millivolt pilot safety gas valve circuits
- 48-inch length provides reach for larger equipment enclosures or remotely mounted gas valves
- Designed for standing pilot furnaces, boilers, water heaters, and gas fireplaces
- Generates millivolt signal from pilot flame heat to maintain gas valve in open position
- Safety shutoff function cuts gas flow when pilot flame is lost
- Universal connection fitting compatible with standard gas valve thermocouple ports
- Replacement-ready design for cross-referencing common OEM millivolt thermocouples
- Suitable for residential and light commercial heating system applications
