Copeland STAS19213T 053030 1-5/8″ Sweat 192 Cu. In. Steel Liquid Line Filter Drier

Description

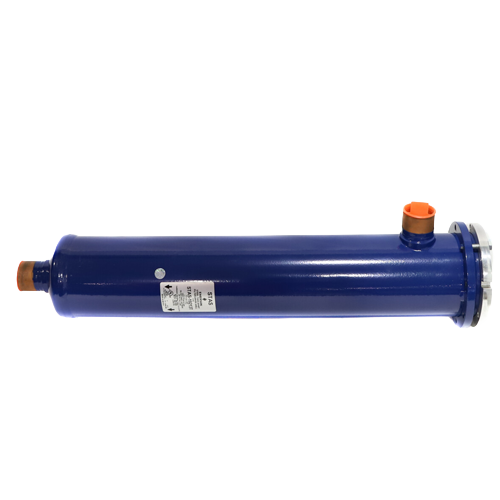

Copeland STAS19213T Steel Liquid Line Filter Drier

The Copeland STAS19213T (SKU 053030) is a heavy-duty steel liquid line filter drier engineered to protect refrigeration and air conditioning systems from moisture, acid, and particulate contamination. With a robust steel shell and generous 192 cubic inch capacity, this drier is built for demanding commercial and industrial refrigeration applications where system reliability is non-negotiable.

Key Features

• 1-5/8″ sweat (solder) connections for secure, leak-free installation
• 192 cubic inch shell volume for high-capacity filtration and moisture absorption
• 680 PSI maximum working pressure for use in high-pressure refrigerant systems
• Accepts 4 drier cores (cores not included) — compatible with standard Copeland/Emerson core configurations
• Steel shell construction for durability and long service life
• Liquid line installation design removes moisture, acid, and debris to protect compressors and system components

Specifications

• Model: STAS19213T
• SKU: 053030
• Connection Size: 1-5/8″ Sweat (ODF)
• Shell Volume: 192 cubic inches
• Maximum Working Pressure: 680 PSI
• Core Capacity: 4 cores (cores sold separately)
• Shell Material: Steel
• Application: Liquid line filter drier

Application

Ideal for commercial refrigeration systems, large-capacity air conditioning equipment, and any application requiring a high-volume, high-pressure liquid line filter drier. The shell-and-core design allows for easy core replacement during routine maintenance without removing the shell from the system, reducing downtime and labor costs.
