Description

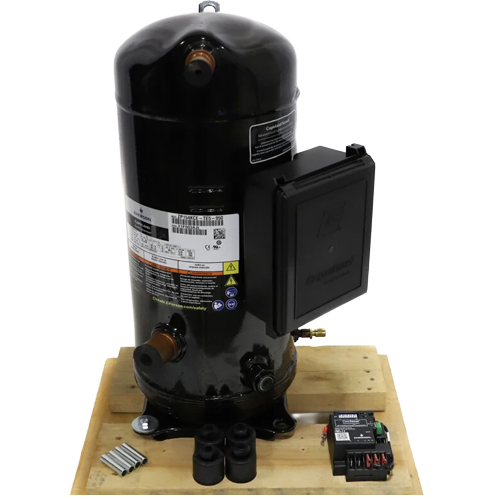

The Copeland ZP154KCE-TE5-950 is a high-capacity scroll compressor engineered for demanding commercial and industrial air conditioning applications. Operating on a 200–230V three-phase power supply and designed for R410A refrigerant, this unit delivers up to 155,000 BTU of cooling capacity with the efficiency and durability that Copeland scroll technology is known for. Its hermetically sealed housing ensures long-term reliability, while its compact footprint makes installation straightforward in a wide range of systems.
Product Highlights
High-efficiency scroll compressor design optimized for R410A refrigerant systems. Hermetic compressor housing provides superior protection and long service life. Compact mounting dimensions simplify installation in tight mechanical spaces. Wide voltage range accommodates varying job-site power conditions.
Technical Specifications
- MPN: ZP154KCE-TE5-950
- Compressor Type: Scroll
- Refrigerant: R410A
- Voltage: 200–220 / 200–230 VAC
- Phase: 3-Phase
- Amperage: 34.7–42.8 A
- BTU Output: 155,000–190,000 BTU
- Weight: 146 lbs
- Discharge Connection Size: 7/8 in.
- Suction Line Size: 1-3/8 in.
- Mounting Dimensions: 7.5 in. x 7.5 in. x 23.02 in.
- Sound Level: 80–85 dBA
